Dahua 2MP Video Balun Solution
In today’s security and surveillance environments, transmitting high-quality video signals over long distances is critical. The 2MP Video Balun Solution is designed to meet the growing demand for reliable, efficient, and cost-effective video signal transmission in modern CCTV installations. By enabling the use of standard CAT5e or CAT6 UTP cables instead of traditional coaxial, this balun solution provides flexibility, reduces installation costs, and ensures dependable video performance without the need for additional power.
Superior Video Format Support
The 2MP Video Balun Solution supports a wide range of popular high-definition analog video formats, including AHD (Analog High Definition), HD-TVI (High Definition Transport Video Interface), and HD-CVI (High Definition Composite Video Interface). With support for resolutions up to 2MP (1080p Full HD), this balun ensures that surveillance cameras deliver sharp, clear, and detailed images, making it suitable for both residential and commercial security systems. This versatility allows integrators and installers to standardize on a single balun type for multiple video technologies, reducing complexity and streamlining installations.
Long-Distance Transmission
One of the standout features of this solution is its ability to extend video signals up to 300 meters (depending on cable quality and environmental factors). By leveraging twisted pair cabling such as CAT5e or CAT6 UTP, the balun enables longer runs than many conventional coaxial solutions, while maintaining signal integrity and reducing the risk of interference. This makes it ideal for large-scale surveillance deployments in warehouses, campuses, office complexes, or outdoor perimeters where long cable runs are unavoidable.
High-Quality Connectors and Build

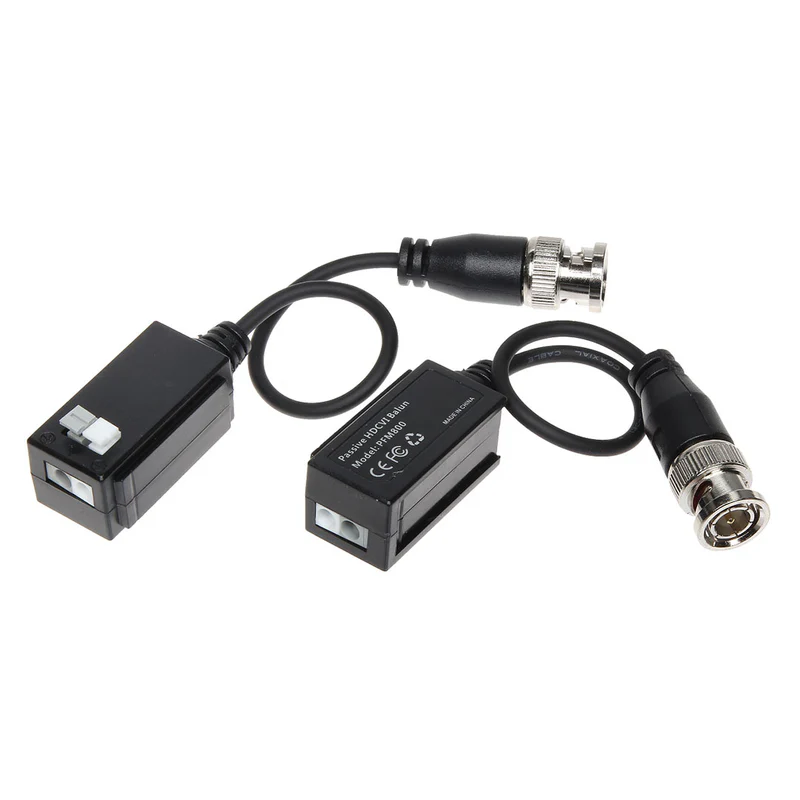

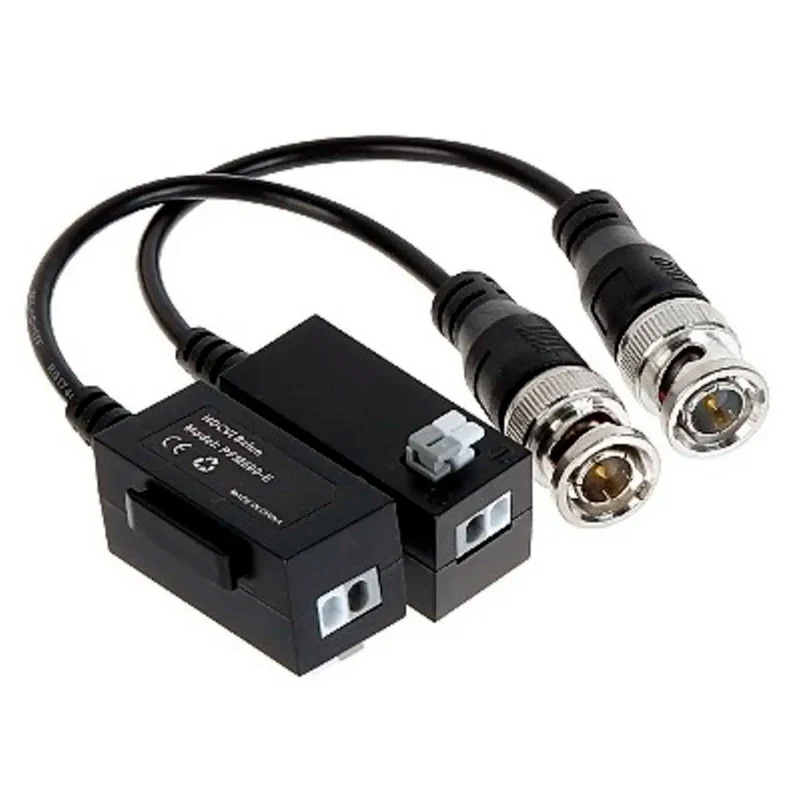

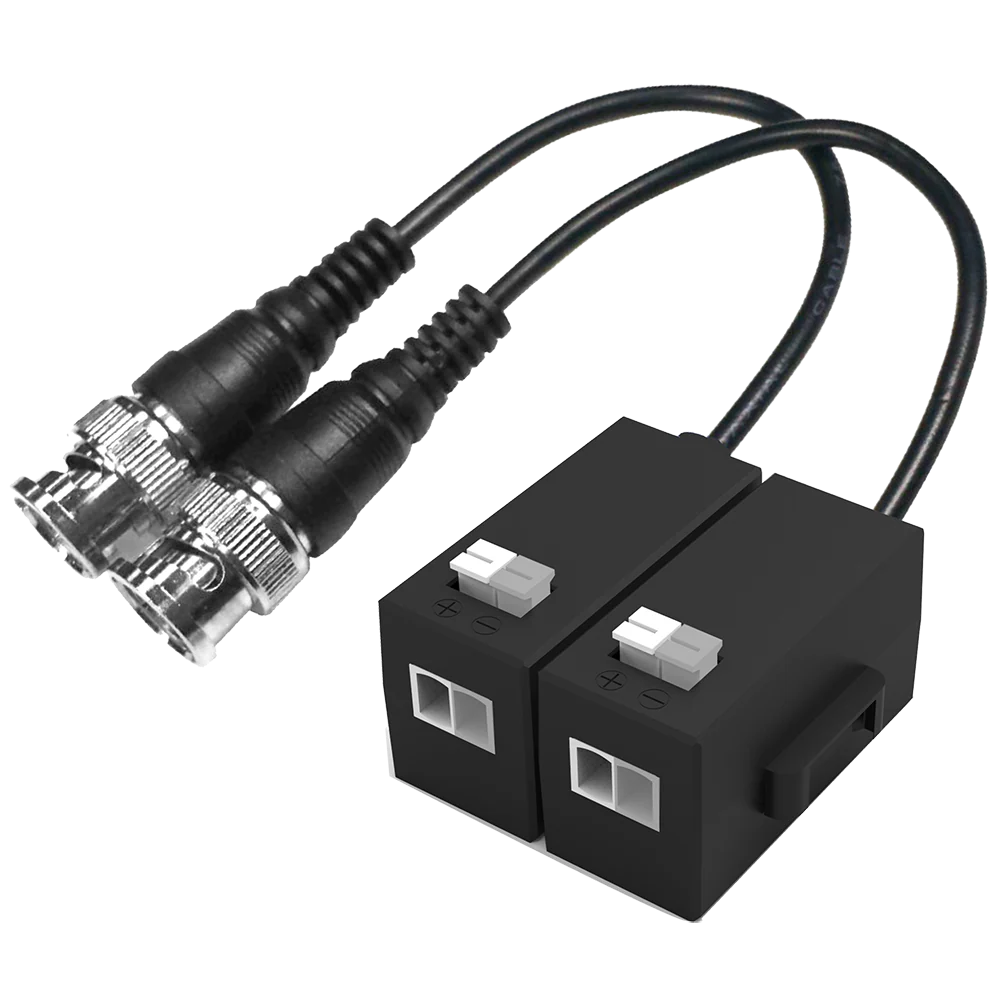

The device features a BNC male connector on one end and a 2-pin terminal block on the other, ensuring secure, simple, and reliable connections. The BNC connector provides a firm fit for direct attachment to cameras, DVRs, or other video equipment, while the terminal block makes it easy to terminate twisted pair cables quickly during installation. This design reduces installation time, minimizes errors, and ensures long-term connection stability.
Wide Frequency Response
With a frequency response range of DC to 60 MHz, the balun supports accurate video signal transmission without noticeable loss or distortion. This wide frequency capability ensures that the balun can handle the bandwidth required for Full HD signals, delivering consistent picture quality even over extended distances.
Built-In Protection Features
In any surveillance setup, video transmission lines can be vulnerable to surges and electrostatic discharge. This 2MP Video Balun Solution incorporates both surge protection and ESD protection to safeguard connected equipment. These features help reduce the risk of damage caused by lightning strikes, power fluctuations, or static discharge, extending the life of cameras, DVRs, and other connected devices. For installations in regions prone to electrical surges, this protection adds an essential layer of reliability.
Robust Design and Durability
The balun is housed in a durable ABS plastic casing that provides both lightweight handling and long-lasting protection. ABS plastic is impact-resistant, non-conductive, and resilient against wear and tear, making it ideal for demanding installation environments. Whether used indoors or in sheltered outdoor applications, the housing ensures that the balun withstands daily stresses while protecting its internal circuitry.
Wide Temperature Range
With an operating temperature range of -10°C to +70°C, this balun is designed to perform reliably across diverse environments. From chilly outdoor conditions to warm indoor setups, it maintains stable performance without compromising signal quality. This makes it suitable for year-round use in locations with varying climates.
Passive, Power-Free Operation
Unlike active baluns that require an external power supply, this solution is completely passive, meaning no power is required for operation. This significantly simplifies installation, reduces infrastructure costs, and eliminates the need for additional cabling or adapters. Simply connect the balun between the camera and recording device, and it is ready to function immediately.
Cost-Effective Cabling with UTP
By enabling the use of CAT5e or CAT6 UTP cables, the balun provides a cost-efficient alternative to coaxial cabling. Twisted pair cables are less expensive, widely available, and easier to install—especially in large buildings or facilities where pulling multiple runs of coaxial cable can be challenging and costly. Additionally, UTP cables can carry multiple signals, such as power, video, and audio, making them highly versatile in modern installations.
Key Technical Specifications
- Video Format Support: AHD, TVI, CVI up to 2MP resolution
- Max Transmission Distance: Up to 300m (depending on signal & cable)
- Connectors: BNC male to 2-pin terminal block
- Frequency Response: DC to 60 MHz
- Surge Protection: Yes
- ESD Protection: Yes
- Temperature Range: -10°C to +70°C
- Housing: Durable ABS plastic
- Installation Type: Passive, no power required
- Cable Type: CAT5e, CAT6 UTP cable
Applications and Use Cases
The 2MP Video Balun Solution is versatile enough to be used in a variety of surveillance scenarios:
- Residential Security Systems – Affordable and simple installation for home CCTV setups.
- Commercial Buildings – Reliable video transmission across offices, malls, and retail stores.
- Educational Institutions – Long-distance camera deployments across campuses.
- Warehouses and Factories – Durable solution for industrial environments.
- Outdoor Surveillance – Stable performance in a wide range of temperatures.
Why Choose the Dahua 2MP Video Balun Solution?
- Versatility – Compatible with multiple HD analog formats (AHD/TVI/CVI).
- Long Distance Transmission – Extends signals up to 300m.
- Easy Installation – Secure connectors and passive operation.
- Protection Features – Built-in surge and ESD protection.
- Durability – Rugged ABS plastic housing for long-term use.
- Cost Efficiency – Utilizes affordable CAT5e/CAT6 cabling.
- Adaptability – Performs reliably in diverse temperature conditions.
Final Thoughts
The 2MP Video Balun Solution is an essential tool for modern CCTV installations. By combining broad video format support, passive operation, long-distance capability, and built-in protection, it delivers excellent performance and reliability at a cost-effective price point. Whether you’re upgrading an existing analog system or setting up a new surveillance infrastructure, this balun makes video transmission simple, stable, and efficient.
