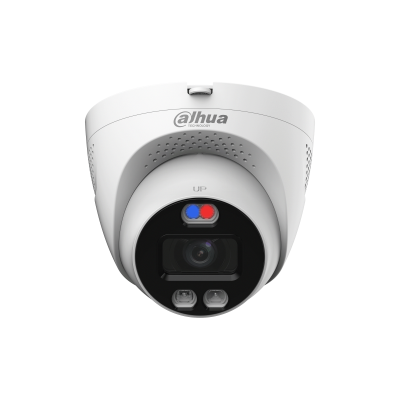

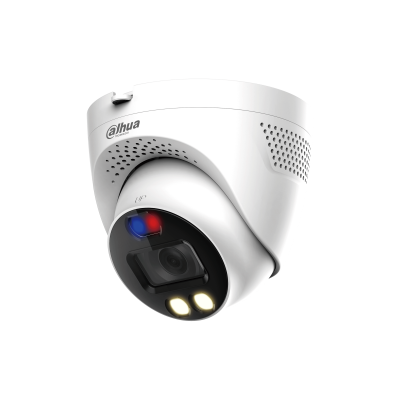

HAC-ME1239TQ-A-PV 2MP Smart Camera

The HAC-ME1239TQ-A-PV is a cutting-edge 2MP security camera designed to provide high-definition surveillance, intelligent illumination, and advanced active deterrence features. Engineered for both indoor and outdoor security applications, this camera combines superior image quality, robust construction, and smart warning capabilities, making it ideal for residential, commercial, and industrial environments.

Crystal-Clear Imaging

At the core of the HAC-ME1239TQ-A-PV is a 2MP CMOS image sensor, delivering full HD 1080p resolution (1920 × 1080 pixels) for crisp, detailed footage. The camera supports multiple video formats, including CVI, TVI, AHD, and CVBS, ensuring seamless integration with various DVR systems. Its progressive scanning system provides smooth video streams, while electronic shutter speeds of 1/25 s–1/100,000 s (PAL) and 1/30 s–1/100,000 s (NTSC) capture fast-moving objects without motion blur.

The camera features ultra-low-light sensitivity, with a minimum illumination of 0.001 lux in color and 0.0001 lux in black-and-white. When the built-in illuminators are activated, it achieves 0 lux, ensuring complete visibility even in total darkness. Combined with a signal-to-noise ratio exceeding 65 dB, the camera produces sharp, high-quality images under all lighting conditions.

Flexible Lens Options and Field of View

The HAC-ME1239TQ-A-PV is equipped with a fixed-focal lens, available in 2.8 mm and 3.6 mm variants.

• 2.8 mm lens: Offers a wide horizontal field of view (FOV) of 108°, vertical FOV of 58°, and diagonal FOV of 127°, perfect for monitoring large open spaces such as yards, parking areas, or building perimeters.
• 3.6 mm lens: Provides a narrower horizontal FOV of 86°, vertical FOV of 46°, and diagonal FOV of 101°, suitable for focused coverage of entrances or corridors.

The camera’s DORI (Detect, Observe, Recognize, Identify) distance ranges from 42.2 m for detection with the 2.8 mm lens to 53.7 m with the 3.6 mm lens, ensuring accurate monitoring at multiple scales.

Advanced Illumination

Equipped with dual smart illuminators (IR and warm light), the camera supports automatic and manual control, providing effective lighting in all conditions. Both IR and warm lights cover a range of up to 40 meters (131.23 ft). The smart illumination system ensures balanced brightness and contrast, reducing glare or overexposure for clear, reliable video capture during nighttime or low-light conditions.

Active Deterrence and Audio Alerts

One of the standout features of this model is its active deterrence capability. The camera can issue sound warnings through pre-recorded messages such as:

• “Alarm”
• “No parking here”
• “Private land, no entry”
• “Warning zone, keep off”
• “Welcome”

These warnings can be configured with adjustable volume (high, medium, low) and duration (5–60 seconds). Additionally, the red/blue flashing lights provide visual deterrence, further discouraging unauthorized access. This combination of audio and visual alerts enhances security by proactively preventing intrusions before escalation.

Intelligent Video Features

The HAC-ME1239TQ-A-PV offers a range of smart video enhancements:

• Day/Night modes with Auto (ICR), Color, or Black-and-White options.
• Backlight compensation (BLC), highlight compensation (HLC), and WDR up to 130 dB to handle complex lighting scenarios.
• 3D Noise Reduction (3D NR) for clear images in low-light conditions.
• Mirror and privacy masking options for customizable monitoring and compliance with privacy regulations.

Durability and Installation

Built to withstand harsh environments, the camera features IP67-rated weatherproofing and operates in temperatures from –40 °C to +60 °C. It supports multiple mounting options, including wall, ceiling, and vertical pole installation, ensuring versatile deployment. The camera’s compact dimensions (Φ109.9 × 100.9 mm) and lightweight design (0.32 kg net weight) allow discreet and flexible placement.

Power and Connectivity

The HAC-ME1239TQ-A-PV operates on 12 VDC ±30%, with a maximum power consumption of 7.6 W when IR is active. A single BNC port delivers video output in CVI/TVI/AHD/CVBS formats, while a built-in microphone (-A) supports audio monitoring.

Reliable Certifications

This model meets CE, FCC, and UL standards, ensuring compliance with international safety and performance regulations.

Conclusion

The HAC-ME1239TQ-A-PV combines high-definition video, intelligent illumination, and proactive active deterrence in a single compact camera. Its smart features, robust design, and flexible installation options make it an ideal solution for enhancing security in homes, businesses, and critical infrastructure. With its superior imaging and active deterrence capabilities, this camera not only monitors but also helps prevent incidents, providing peace of mind for any security-conscious environment.
