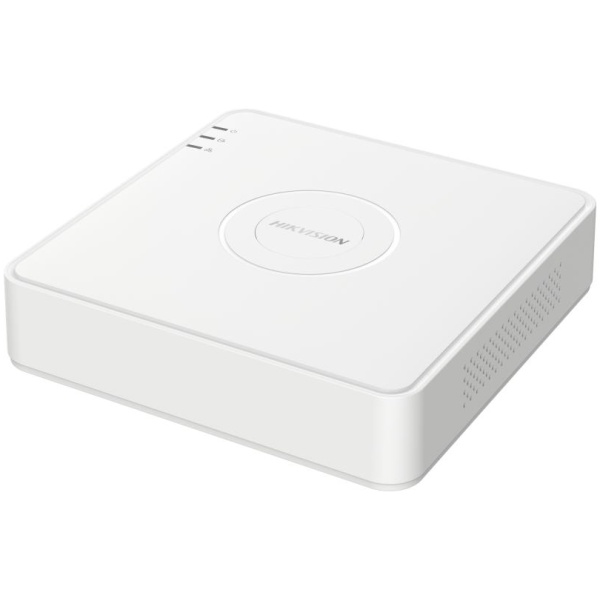

Hikvision DS-7104NI-Q1/4P/M 4 Channel Q Series Network Video Recorder

The Hikvision DS-7104NI-Q1/4P/M is a reliable and compact 4-channel network video recorder (NVR) designed to deliver advanced recording, playback, and management features for small to medium-sized surveillance setups. With support for up to 8 network cameras, efficient compression technology, smart video analytics, and built-in PoE, this NVR provides an effective solution for homes, small businesses, retail stores, and office environments.

Camera & Video Input

The NVR supports up to 4 IP video inputs, with the ability to connect to third-party network cameras via standard protocols, ensuring flexibility and compatibility. Despite being a 4-channel NVR, it can handle up to 8 network cameras for expanded coverage in certain applications.

The recorder supports video input at resolutions up to 4 MP, enabling clear and detailed surveillance footage. With support for line crossing and intrusion detection, it also integrates smart analytics to enhance security effectiveness.

Video Compression Technology

The DS-7104NI-Q1/4P/M is equipped with advanced H.265+ and H.265 compression technology, alongside H.264 options. This ensures efficient use of storage and bandwidth, reducing file sizes while maintaining video quality. By lowering storage requirements, operational costs are minimized without compromising image clarity.

Recording & Playback

This NVR supports full-channel recording at up to 4 MP resolution, guaranteeing sharp image capture across all connected cameras. Playback options are highly flexible:

• 1-channel playback at 4 MP resolution
• 2-channel playback at 1080p resolution

This versatility allows users to review multiple streams at once or focus on high-resolution playback when investigating incidents. The system also supports smart search within a specific area of the video, making it faster and easier to locate important events. Additionally, smart playback improves efficiency by highlighting motion or specific detection events during recorded footage review.

Video Output

The NVR provides HDMI and VGA outputs, each capable of displaying at 1080p resolution. This makes it suitable for integration with a wide variety of monitors and display setups, ensuring crisp and clear video output during live viewing or playback sessions.

Storage

The DS-7104NI-Q1/4P/M is designed with a SATA interface supporting 1 hard disk of up to 6 TB capacity. This ensures ample storage for small to medium installations, and with efficient compression, users can retain more footage for extended periods.

Networking & Connectivity

The NVR is equipped with:

• 1 × 100 Mbps Ethernet network interface for uplink
• 4 × 100 Mbps independent PoE ports for direct camera connection and power supply

This built-in PoE switch simplifies installation by providing both data and power through a single cable, reducing wiring complexity. With incoming bandwidth of 40 Mbps and outgoing bandwidth of 60 Mbps, the recorder can handle smooth real-time video transmission and remote access.

Smart Features

The DS-7104NI-Q1/4P/M integrates several intelligent video analytics:

• Line crossing detection – triggers alerts when objects cross a virtual boundary.
• Intrusion detection – detects when an object enters a predefined area.

These features help automate security monitoring and reduce reliance on constant manual surveillance.

The one-key operation function simplifies setup by automatically searching, modifying, and adding IP cameras once the device is activated. This user-friendly configuration makes it suitable even for users with limited technical knowledge.

Remote Access & Management

Hikvision’s Hik-Connect platform is fully supported, enabling remote access through mobile devices or PCs. This allows users to:

• View live video feeds
• Playback recorded footage
• Configure settings remotely

With Hik-Connect, security personnel or homeowners can stay connected to their surveillance system from anywhere.

Build & Reliability

The NVR is part of Hikvision’s Q Series, known for its reliability and user-friendly design. Its compact form factor makes it suitable for desktop or shelf placement in offices, homes, or small commercial premises. Combined with efficient power usage and robust performance, it is an economical and dependable choice for everyday surveillance needs.

Use Cases

The DS-7104NI-Q1/4P/M is ideal for:

• Home security systems – enabling easy camera integration and storage of essential footage.
• Small retail shops – ensuring theft prevention and staff monitoring with high-resolution playback.
• Office surveillance – providing a centralized monitoring solution for workplace security.
• Remote access needs – allowing users to stay connected through mobile devices with Hik-Connect.

Conclusion

The Hikvision DS-7104NI-Q1/4P/M 4 Channel Q Series NVR combines powerful recording capabilities, efficient video compression, built-in PoE, and smart analytics in a compact and cost-effective package. Supporting up to 8 network cameras, full 4 MP recording, and Hik-Connect remote access, it is an excellent choice for small-scale surveillance setups seeking reliability and efficiency. Whether for homes, offices, or small businesses, this NVR ensures streamlined installation, intelligent monitoring, and secure video management.
