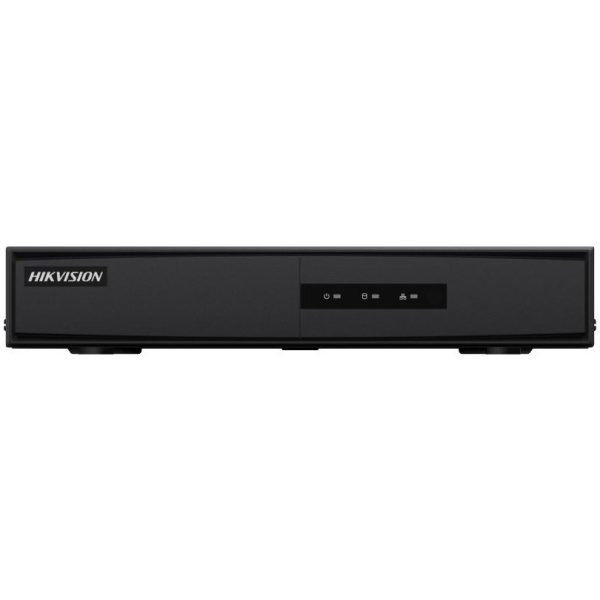

Hikvision DS-7108HGHI-M1 8-Channel 720p TURBO HD DVR

The Hikvision DS-7108HGHI-M1 is a professional-grade 8-channel DVR that provides reliable, flexible, and cost-effective video recording for both residential and commercial surveillance systems. Supporting multiple video formats, intelligent motion detection, and efficient video compression, this DVR is built to deliver high-quality recording and playback while optimizing storage space. With its compatibility with analog, HD-TVI, AHD, HDCVI, CVBS, and IP cameras, it is an excellent solution for hybrid surveillance deployments.

Intelligent Motion Detection 2.0

A standout feature of this DVR is its deep learning-based Motion Detection 2.0. Enabled by default across all analog channels, this advanced technology can distinguish between humans and vehicles, minimizing false alarms caused by irrelevant objects such as swaying leaves, moving lights, or small animals. This ensures more accurate event notifications and efficient monitoring.

Additionally, the system supports quick search by object or event type, making playback and incident investigation faster and more convenient for security personnel.

Flexible Recording and Video Compression

The DS-7108HGHI-M1 employs advanced compression technologies including H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264, which significantly reduce bandwidth and storage requirements without compromising video quality. This allows longer recording durations while saving costs on hard disk drives.

Encoding Resolution & Frame Rate:

• For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF at 15 fps
• For 720p stream access: 720p/WD1/4CIF/VGA/CIF at 15 fps
• For SD stream access: WD1/4CIF/VGA/CIF at 25 fps (PAL) / 30 fps (NTSC)

Sub-Stream:

• For 1080p/720p stream access: CIF/QVGA at 15 fps
• For SD stream access: CIF/QVGA at 25 fps (PAL) / 30 fps (NTSC)

The DVR also supports a video bitrate of 32 Kbps to 4 Mbps, ensuring flexibility in balancing video quality and storage efficiency.

Multi-Format Video Input Support

This DVR offers extensive compatibility, making it easy to integrate with various surveillance systems:

• Analog Video Input: 8 channels via BNC interface, supporting coaxitron connection
• HDTVI Input: 1080p25, 1080p30, 720p25, 720p30
• AHD Input: 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
• CVBS Input: Supported for legacy analog cameras
• IP Video Input: 2 channels by default (expandable up to 10 channels), supporting up to 5 MP resolution IP cameras with H.265+/H.265/H.264+/H.264 compression

This hybrid compatibility allows users to upgrade older systems to high-definition surveillance without replacing existing infrastructure.

Video and Audio Capabilities

The DVR supports 1-channel RCA audio input and 8-channel audio input through coaxial cable, ensuring synchronized video and audio recording. It also offers:

• Audio Output: 1-channel RCA (linear, 1 KΩ)
• Two-Way Audio: Via reuse of the first audio input
• Audio Compression: G.711u with a bitrate of 64 Kbps

This enables interactive communication in surveillance setups where operators need to issue real-time voice commands or engage with monitored areas.

For display output, the DVR provides:

• HDMI Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output Mode: HDMI and VGA simultaneous output

The system supports 8-channel synchronous playback, ensuring easy review of multiple camera feeds at once.

Networking and Remote Access

With a total bandwidth of 72 Mbps, the DVR ensures smooth video transmission across networks. It supports a wide range of network protocols, including TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, and HTTPS.

Users can connect remotely to up to 64 concurrent connections, enabling real-time monitoring, playback, and management from PCs, mobile devices, or remote servers.

The unit features a RJ45 10/100 Mbps Ethernet interface, ensuring stable and adaptive connectivity.

Storage & Backup

The DS-7108HGHI-M1 supports 1 SATA interface, with a maximum storage capacity of up to 4 TB per disk. This makes it suitable for extended recording periods, especially when paired with efficient H.265 Pro+ compression.

For data backup, users can utilize 2 × USB 2.0 ports on the rear panel, allowing quick and convenient export of recordings for investigation or archiving.

Power, Consumption & Environment

The DVR is designed to be energy-efficient, with a power supply of 12 VDC, 1.5 A and maximum consumption of ≤ 17 W (without HDD).

It can operate in temperatures from -10 °C to 55 °C (14 °F to 131 °F) and humidity levels between 10% and 90%, making it versatile for various installation environments.

The unit’s compact dimensions of 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 in.) and weight of ≤ 1 kg (2.2 lb without HDD) allow for flexible installation in limited spaces.

Conclusion

The Hikvision DS-7108HGHI-M1 8-Channel DVR is a robust and versatile recording solution that balances affordability with advanced functionality. With intelligent motion detection powered by deep learning, hybrid video input support, efficient compression, and reliable remote access, it caters to both small businesses and residential security needs. Its ability to integrate analog and IP cameras makes it a future-proof investment, allowing users to gradually transition to higher-resolution systems without replacing existing infrastructure.
