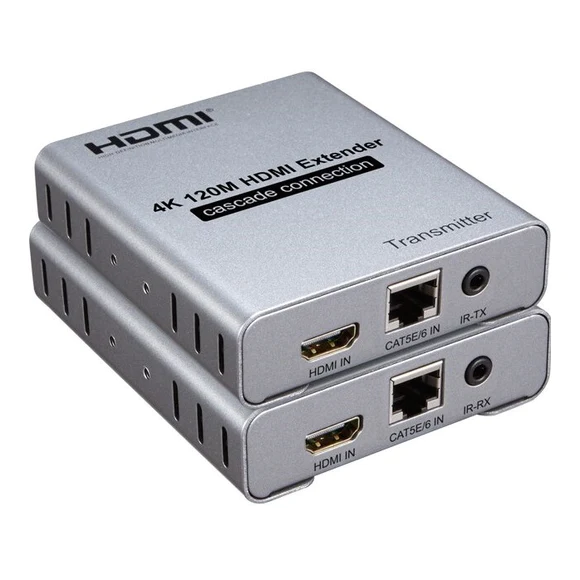

4K 120 Meters HDMI Extender with Cascade Connection

The 4K 120 Meters HDMI Extender with Cascade Connection is a high-performance transmission solution designed to deliver ultra-high-definition video and audio signals across long distances without compromising quality. Supporting resolutions up to 4K, this extender enables seamless connectivity between HDMI devices, even when separated by distances of up to 120 meters via Cat5e/6/7 cables. With features such as IR pass-back control, cascade support for up to eight receivers, and multi-point connectivity, it is ideal for both residential entertainment setups and professional AV installations in offices, conference rooms, and public venues.

Ultra HD 4K Signal Transmission

Built to handle the demands of modern high-resolution devices, this extender ensures crisp, clear, and vibrant video at 4K resolution. By transmitting uncompressed digital signals over long distances, it preserves the original quality of movies, presentations, or gameplay. Whether used for streaming media, gaming, or corporate displays, the extender delivers professional-grade visual fidelity without lag or distortion.

Long-Distance Connectivity – Up to 120 Meters

Traditional HDMI cables often face limitations in distance and signal quality. The HDMI extender overcomes these challenges by using a single Cat5e/6 Ethernet cable to transmit HDMI signals over distances of up to 120 meters. For users seeking the best results, Cat6 or Cat7 cables are recommended, as they provide greater bandwidth and better shielding, ensuring stronger performance and longer transmission distances with reduced interference.

This makes the extender an excellent solution for scenarios such as connecting projectors in large halls, linking distant displays in retail or hospitality environments, or bridging media sources to TVs in different rooms at home.

Flexible Cascade Connection – Expand Coverage

One of the standout features of this extender is its ability to cascade connections, supporting up to 8 receivers linked together. This allows one HDMI source to be displayed across multiple screens simultaneously, making it an ideal solution for digital signage, video walls, training environments, or multi-room entertainment setups.

The cascading function ensures that each display receives the same high-quality 4K signal, allowing synchronized playback across all connected screens.

Multipoint-to-Multipoint Matching

The extender supports point-to-point, point-to-multipoint, and multipoint-to-multipoint connections, providing unmatched flexibility in deployment. When multiple transmitters (TX) and receivers (RX) are connected via a network switch, users can configure settings through the “SET” function. Matching the transmitter and receiver (e.g., TX “SET” = 0001 and RX “SET” = 0001) ensures seamless communication, enabling the system to manage multiple input and output devices with ease.

This feature makes the extender a versatile tool in complex AV setups, where multiple sources and displays need to be controlled and managed effectively.

Integrated IR Pass-Back Control

The extender includes IR pass-back functionality, allowing users to control their HDMI source devices remotely from the receiver’s location. By connecting the IR receiver to the transmitter and the IR transmitter to the receiver, the system replicates remote control commands across the extended distance.

For example, if the HDMI source (such as a Blu-ray player or media server) is located in one room, users can control it from another room where the display and receiver are placed. This feature enhances convenience by eliminating the need to physically access the source device to change settings or playback options.

Easy Installation & Power Support

The setup process is straightforward:

1. Connect the HDMI source (PC, Blu-ray player, console, or media box) to the transmitter (TX) with a standard HDMI cable.
2. Use a Cat5e/6/7 Ethernet cable to link the transmitter to the receiver (RX).
3. Connect the receiver to the HDTV or display using another HDMI cable.
4. Attach the IR receiver and transmitter to enable remote control.
5. Power both the transmitter and receiver with their respective 5V power adapters. Once powered, the LED indicators confirm successful operation.

This plug-and-play design requires no software or drivers, making it user-friendly for both professionals and home users.

Wide Range of Applications

The 4K 120 Meters HDMI Extender is ideal for diverse scenarios, including:

• Home Entertainment: Extend HDMI sources like game consoles, media players, or Blu-ray players to TVs across different rooms.
• Office & Business: Share presentations from a single source across multiple screens in meeting rooms or training areas.
• Retail & Hospitality: Deliver synchronized digital signage to multiple displays in stores, hotels, or restaurants.
• Education & Training: Connect projectors and displays in lecture halls or classrooms without sacrificing image quality.
• Public Venues & Events: Perfect for churches, exhibitions, stadiums, or control rooms requiring large-scale video distribution.

Conclusion

The 4K 120 Meters HDMI Extender with Cascade Connection offers a powerful, flexible, and reliable way to extend HDMI signals over long distances. With support for ultra-high-definition video, IR pass-back remote control, and cascade connections for multiple displays, it provides everything needed for both professional and residential applications. Its robust design, simple setup, and compatibility with Cat5e/6/7 cabling make it a cost-effective and future-proof choice for anyone seeking long-distance HDMI distribution.

Whether for home cinema enthusiasts, business professionals, or AV system integrators, this extender ensures outstanding performance and ease of use—delivering 4K quality wherever you need it, up to 120 meters away.
