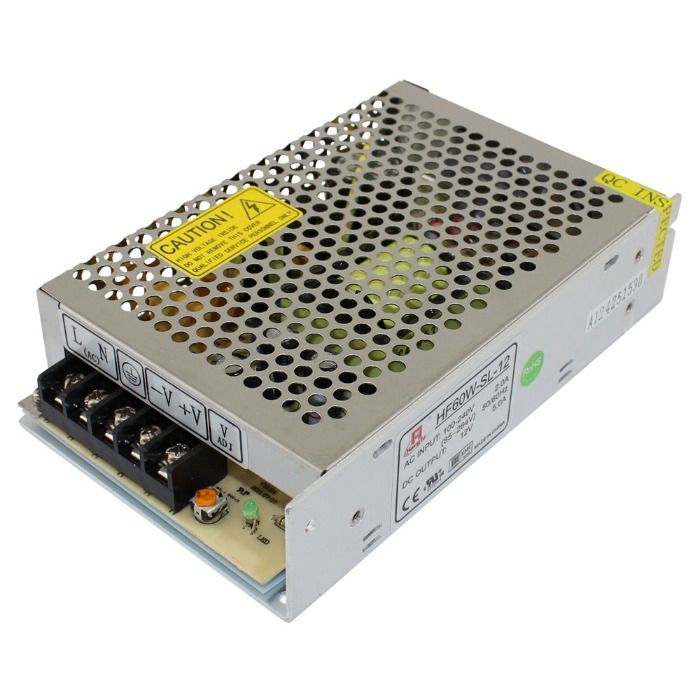

5 Amps CCTV Power Supply (Open Design)

A stable and reliable power supply is the backbone of any CCTV surveillance system. The 5 Amps CCTV Power Supply (Open Type) is designed to deliver consistent 12V DC output with a current rating of 5A, making it ideal for powering multiple cameras simultaneously. With its open-frame design, compact build, and dependable performance, this power supply is a practical solution for installers, system integrators, and anyone running a small to medium-sized CCTV system.

Key Features

Universal Input & Stable Output

The power supply supports a wide input voltage range (110–240V AC), making it suitable for use in different regions and environments. It delivers a regulated 12V DC output at up to 5A current, providing a total power of 60 watts, enough to run 4–5 cameras simultaneously depending on their consumption.

Multiple Output Channels

Depending on the model, this power supply features 4 or 5 output channels, allowing installers to distribute power to several cameras from a single unit. This reduces clutter, simplifies wiring, and ensures centralized power management.

Built-in Safety Protections

For long-term reliability, the unit is equipped with overload protection and short-circuit protection. These features safeguard both the power supply and connected devices, ensuring that your cameras remain safe from electrical surges or faults.

Passive Cooling System

The fanless passive cooling ensures efficient heat dissipation without generating noise. This makes the unit suitable for indoor environments where silent operation is essential.

Open-Frame Design

The open design makes the power supply lightweight and compact. While it lacks an external casing, it is favored for installations where ventilation and easy access are required. Installers can easily mount it on walls, place it on flat surfaces, or integrate it into enclosures.

LED Indicators (Optional)

Some models come with LED status indicators, which help technicians quickly assess the power supply’s working condition and troubleshoot issues without extra tools.

Applications

The 5A CCTV Power Supply is versatile and suitable for various use cases, including:

1. CCTV Camera Systems – Power up to 4–5 cameras from a single supply.
2. Security DVR/NVR Accessories – Provide stable voltage for recorders and accessories.
3. LED Strips & Lighting Projects – Run low-voltage LED lighting installations.
4. Access Control Systems – Supply power to card readers, door locks, and controllers.
5. DIY Electronics Projects – Ideal for hobbyists requiring stable 12V DC at up to 5A.

Advantages

• Centralized Power Management: Instead of using individual adapters for each camera, this supply provides one consolidated solution.
• Cost-Effective: More affordable than purchasing multiple small adapters.
• Simplicity in Installation: Fewer cables and power sockets required.
• Reliable Power Delivery: Maintains steady 12V DC output for sensitive electronic devices.
• Space-Saving: Compact, open design fits into tight installation areas.

Safety Considerations

Because the design is open-frame (without a protective casing), it should be handled with care during installation. Installers should ensure it is mounted in a safe, dry, and ventilated location, away from dust, moisture, or accidental contact. For environments requiring additional protection, it can be housed in a separate enclosure.

Why Choose This Power Supply?

The 5 Amps CCTV Power Supply (Open Type) strikes the perfect balance between affordability, reliability, and performance. It is designed to meet the essential power needs of small to medium CCTV systems while offering built-in protection for peace of mind. Whether for home surveillance, office setups, or small businesses, this power supply is an efficient choice.

Conclusion

The 5A CCTV Power Supply (Open Design) is a dependable and cost-effective solution for powering multiple low-voltage devices. With its universal input range, 12V DC regulated output, multiple channels, and safety protections, it ensures consistent performance across a wide range of applications. While its open-frame design requires careful handling, it also makes the unit compact, easy to mount, and highly efficient in terms of heat dissipation.

For installers and end-users looking for a simple, reliable, and budget-friendly way to power up to 5 CCTV cameras or similar devices, this power supply delivers the right mix of stability, safety, and convenience.
