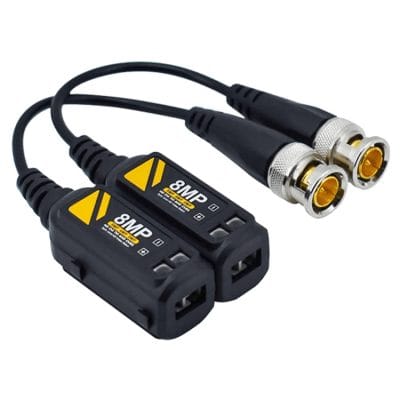

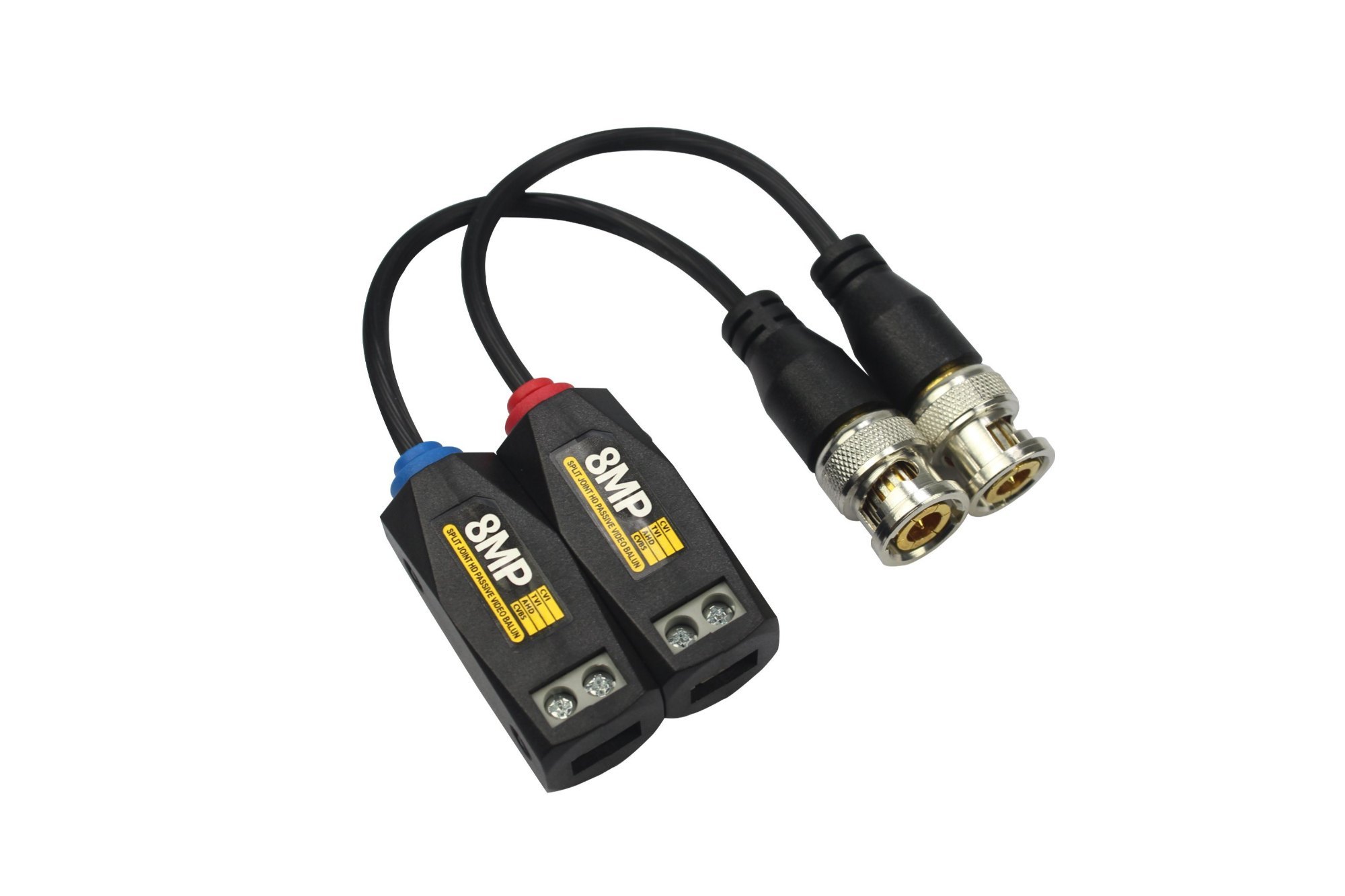

8MP Video Balun In Kenya
Enhance your surveillance system with the 8MP Video Balun, designed to transmit ultra-high-resolution video signals over cost-effective UTP cables. Whether you’re upgrading an existing analog setup or installing a brand-new CCTV network, this balun ensures stable, interference-free signal transmission across long distances — without the need for bulky coaxial cables.
Key Specifications
| Feature | Details |
|---|---|
| Transmission Signal | 1 Channel (Single Video Input/Output) |
| Supported Resolution | 720P / 960P / 1080P / 3MP / 4MP / 5MP / 8MP |
| Compatible Formats | CVI / TVI / AHD / CVBS |
| Transmission Distance | AHD/CVI: Up to 400m |
| Coaxial Video Connector | BNC-M (75 Ohms) |
| UTP Cable Type | CAT5 / CAT5E / CAT6 |
| Anti-Interference | >60dB Noise Immunity |
| ESD Protection | Air Discharge Level 3 |
| Surge Protection | Coax & UTP Connectors Rated at 2KV |
Ultra HD 8MP Signal Support
Unlike standard baluns that max out at 1080p or 5MP, this 8MP-enabled balun is built to handle 4K UHD analog video formats with zero loss of clarity. It supports all major HD analog transmission technologies:
✅ AHD (Analog High Definition)
✅ HD-CVI (Composite Video Interface)
✅ HD-TVI (Transport Video Interface)
✅ CVBS (Standard Analog Video)
You can confidently deploy it with high-res cameras up to 8MP, ensuring full compatibility and future-proof expansion.
Long-Distance Transmission
Engineered with low-loss components and precision balancing technology, this balun provides long-range video transmission without blurring or ghosting:
- AHD / CVI Cameras: Up to 400 meters
- TVI / CVBS Cameras: Up to 200 meters
This makes it ideal for commercial buildings, warehouses, campuses, and perimeter security installations, where distances often exceed the capabilities of traditional coaxial cabling.
Advanced Interference Protection
Thanks to its >60dB anti-interference capability, this balun effectively suppresses:
- Electromagnetic interference (EMI)
- Radio frequency interference (RFI)
- Ground loop noise
The device also includes electrostatic discharge (ESD) protection at Level 3, ensuring stable performance even in harsh electrical environments, such as near transformers or industrial machinery.
Rugged & Secure Connectors
- BNC-M 75Ω connector ensures tight, professional-grade coaxial termination.
- UTP terminal supports CAT5, CAT5E, or CAT6 cables, allowing you to replace expensive coaxial runs with affordable twisted-pair cabling.
- Supports 2KV surge protection on both coax and UTP connectors, providing peace of mind against lightning strikes or voltage spikes.
Simple Plug-and-Play Installation
No tools, software, or adapters required.
- Connect the camera’s BNC output to the balun.
- Attach UTP cable (using push-terminal or screw connectors).
- Plug into DVR or monitor using a matching receiver balun.
Works with passive systems, meaning no external power supply is required.
Ideal Applications
✔ CCTV Surveillance Systems (HD & Analog)
✔ Long-Distance Cable Runs in Buildings or Outdoor Installations
✔ Commercial, Industrial, or Residential Security Networks
✔ Upgrading Coax-Based Systems to UTP Wiring
Why Choose This 8MP Video Balun?
| Benefit | Advantage |
|---|---|
| 8MP Ultra HD Support | Future-proof clarity for modern camera systems |
| Long Transmission Distance | Up to 400m without repeaters |
| Superior Noise Filtering | >60dB anti-interference for clean video |
| High Surge & ESD Protection | Withstands power spikes & static discharge |
| Universal Format Support | Works with all major analog technologies |
Final Verdict
For professionals and DIY installers alike, the 8MP Video Balun offers the perfect balance of performance, durability, and simplicity. Whether upgrading to ultra-high-resolution cameras or extending legacy systems, it ensures stable and distortion-free video transmission over long distances — using budget-friendly UTP cables.
Reliable. Powerful. Future-proof. Upgrade your surveillance network with confidence.
