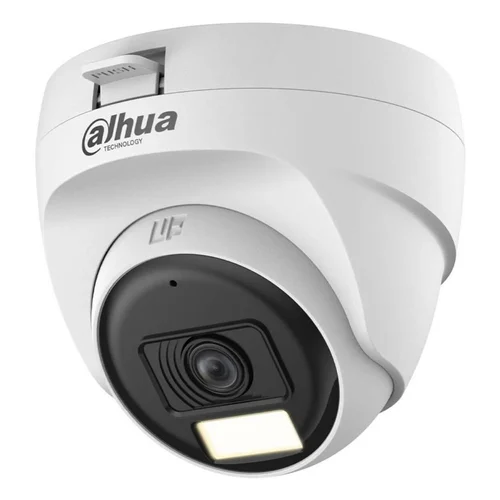

DAHUA DH-HAC-T1A21P-U-IL 2.8MM 2MP IR HDCVI Camera

The Dahua DH-HAC-T1A21P-U-IL 2.8mm 2MP IR HDCVI Camera is a high-performance surveillance solution designed to deliver reliable video monitoring for both residential and commercial applications. With its advanced imaging technology, durable design, and versatile installation options, this camera provides clear, full HD monitoring in various lighting and environmental conditions. Whether you need to secure homes, offices, shops, or public areas, this compact dome camera offers professional-grade performance at an affordable price.

Crystal-Clear 2MP Full HD Resolution

At the heart of this camera is a 2MP CMOS image sensor that delivers maximum resolution of 1920 (H) × 1080 (V). With progressive scanning, the DH-HAC-T1A21P-U-IL ensures smooth, sharp images without motion blur, making it ideal for monitoring moving subjects. From fine facial features to detailed objects, the full HD resolution guarantees dependable evidence capture.

Exceptional Low-Light Performance

The camera excels in low-light scenarios with a minimum illumination of 0.02 lux @F2.0 (Color), 0.002 lux @F2.0 (B/W), and 0 lux with IR on. Its dual light technology combines IR illumination (25m range) and warm light (20m range) to ensure vivid color imaging or clear black-and-white video at night. The camera automatically switches illumination modes based on conditions, ensuring visibility in complete darkness while preventing overexposure or underexposure.

Intelligent Illumination Control

Featuring Smart IR & Warm Light (WL) modes, the camera intelligently adjusts brightness to deliver balanced images in varying lighting conditions. With two warm light and two IR LEDs, the DH-HAC-T1A21P-U-IL adapts to diverse surveillance environments, reducing hotspots and ensuring even lighting across the field of view.

Flexible Lens Options for Wider Coverage

The camera is equipped with fixed focal lenses of 2.8mm or 3.6mm, providing options to suit different surveillance needs.

• 2.8mm lens delivers a wide 100° horizontal field of view, suitable for monitoring open areas like retail shops, entrances, and small offices.
• 3.6mm lens offers a narrower 80° field of view, ideal for focusing on specific zones such as corridors, parking areas, or access points.

Both lens options provide excellent coverage, while the DORI (Detect, Observe, Recognize, Identify) distances ensure accurate monitoring ranges.

Advanced Video Features

The DH-HAC-T1A21P-U-IL supports multiple video formats including CVI, TVI, AHD, and CVBS, all selectable via a single BNC port, making it highly versatile and compatible with different DVR systems.

Key video features include:

• 1080p Full HD at 25/30 fps (CVI/AHD/TVI) for smooth live video.
• 960H analog support for legacy systems.
• Day/Night ICR for automatic color-to-B/W switching.
• 2D Digital Noise Reduction (2D NR) for clearer images in low-light.
• DWDR (Digital Wide Dynamic Range) to balance bright and dark areas in high-contrast scenes.
• BLC/HLC for improved clarity in backlit or overexposed environments.

With mirror and privacy masking (up to 8 zones) functions, the camera can be tailored to meet specific monitoring needs while protecting privacy.

Built-In Audio for Enhanced Security

Equipped with a built-in microphone, the camera provides synchronized audio recording along with video footage. This feature adds valuable context to recordings, making it easier to interpret incidents and improve situational awareness.

Robust Build and Installation Flexibility

The camera is housed in a durable plastic casing with basic anti-corrosion protection, designed for long-term use in both indoor and semi-outdoor environments. Measuring only Φ85 × 77.1 mm and weighing just 0.11 kg, it’s compact and discreet, blending easily into any environment.

The camera supports both wall mount and ceiling mount installation, with 360° pan, 78° tilt, and 360° rotation adjustment, giving installers maximum flexibility to achieve the perfect viewing angle.

Reliable Power and Efficiency

Operating on 12 VDC ± 30%, the camera has a maximum power consumption of only 2.1W, even with LEDs on. This energy-efficient design ensures cost savings while maintaining strong performance.

Built to Withstand Harsh Environments

The camera is designed to operate in extreme weather conditions with a wide temperature range of -40°C to +60°C and humidity tolerance of up to 95% non-condensing. Whether installed in hot climates, cold storage areas, or humid regions, it delivers consistent performance year-round.

Certified Quality and Compliance

The DH-HAC-T1A21P-U-IL is certified under CE-LVD (EN 62368-1) and CE-EMC (EN 55032; EN 55035), ensuring it meets international safety and electromagnetic compatibility standards.

Conclusion

The Dahua DH-HAC-T1A21P-U-IL 2.8mm 2MP IR HDCVI Camera is an excellent choice for users who need a versatile, reliable, and cost-effective surveillance solution. Combining full HD video clarity, intelligent illumination, built-in audio, and robust environmental adaptability, this camera delivers high-quality performance in a compact, easy-to-install design. Perfect for home, office, retail, and small business security, it ensures you get dependable protection day and night.
