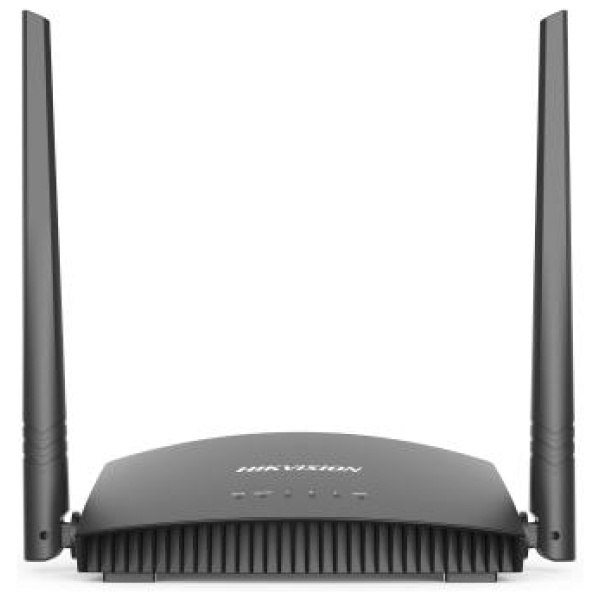

DS-3WR3N 300M Wireless Router

The DS-3WR3N 300M Wireless Router is a compact, reliable, and easy-to-use networking device designed for home and small office environments. Combining robust wireless performance with flexible operational modes and enhanced security features, this router ensures seamless connectivity for multiple devices while providing a cost-effective solution for everyday networking needs.

Compact and User-Friendly Design

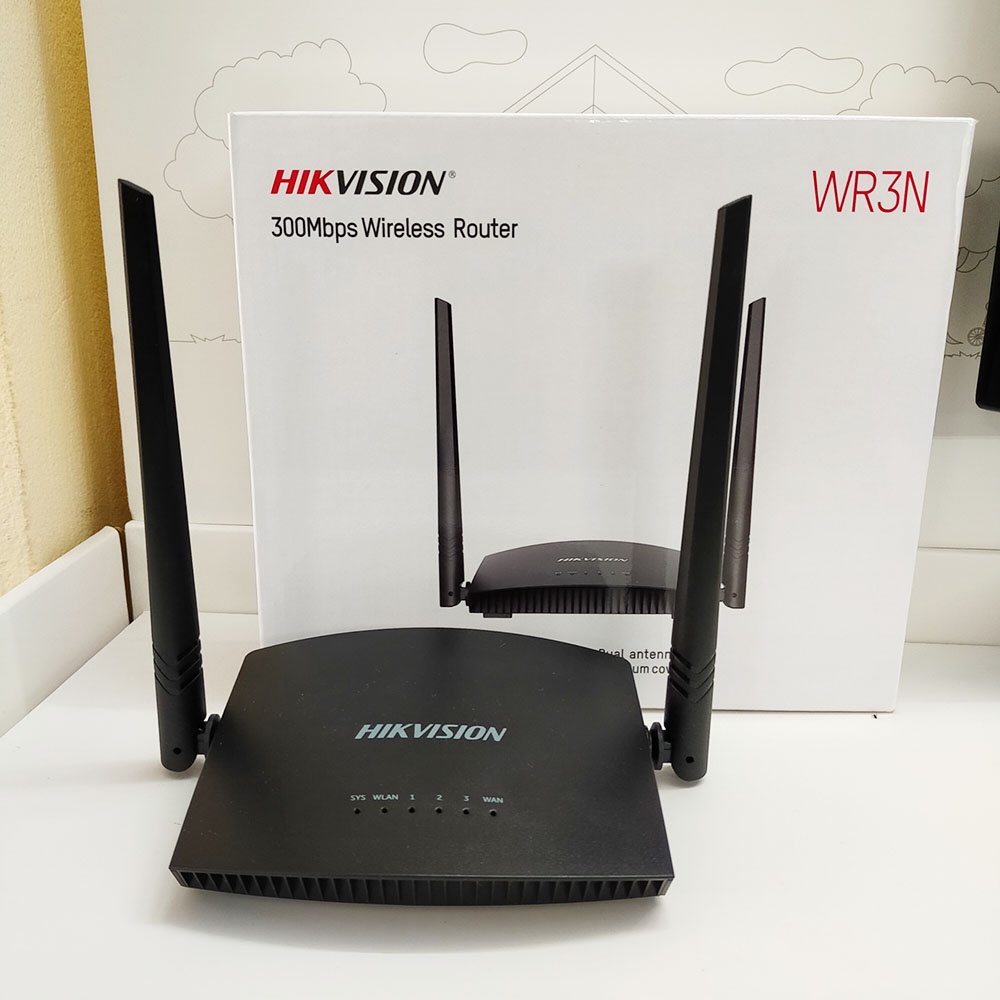

The DS-3WR3N features a small and practical design, measuring 174.82 mm × 96.45 mm × 181.06 mm (6.88″× 3.80″× 7.13″), which allows it to fit neatly on a desktop or in a small office space. Its lightweight construction at 0.134 kg (0.295 lb.) makes installation and repositioning effortless. The router is packaged as a single unit and includes an Ethernet cable and a quick installation guide, making it ready for immediate deployment. The packaging dimensions of 231 mm × 203 mm × 51 mm (9.09″× 7.99″× 2.01″) with a gross weight of 0.634 kg (1.398 lb.) ensure safe transportation and storage.

Wireless Performance

Operating on the 2.4 GHz band, the DS-3WR3N provides wireless speeds of up to 300 Mbps, suitable for standard web browsing, streaming music and video, and connecting smart home devices. It supports IEEE 802.11b/g/n standards, ensuring compatibility with most Wi-Fi-enabled devices.

Equipped with beamforming technology, the router enhances signal strength and coverage by focusing the wireless signal directly toward connected devices, reducing interference and improving overall connection quality. The receiving sensitivity is rated at 58 ± 2 dB@AC80-MCS9 and 84 ± 2 dB@AC80-MCS0, ensuring stable connectivity even at moderate distances from the router.

Antennas and Coverage

The router comes with two high-gain antennas that extend coverage and provide consistent wireless signals throughout small apartments, offices, or multi-room setups. These antennas are designed to optimize signal strength and reliability while maintaining a compact form factor.

Hardware and Connectivity

The DS-3WR3N features four RJ45 LAN ports (10/100 Mbps auto-negotiation) for wired connections to computers, printers, or other networked devices. It also includes one WAN port for connecting to your internet source. LED indicators provide clear status information for power, internet connection, and network activity. Additionally, a reset button allows users to quickly restore factory settings if needed.

The router operates on a 9 VDC, 1 A power supply and consumes a maximum of 5.4 W, making it energy-efficient while maintaining reliable performance. Its operating temperature range is 0 ℃ to 40 ℃ (32 ℉ to 104 ℉), and it can be safely stored at temperatures from –40 ℃ to 70 ℃ (–40 ℉ to 158 ℉). Humidity tolerance ranges from 10% to 90% RH non-condensing for operation and 5% to 90% RH non-condensing for storage, ensuring stable performance in typical indoor conditions.

Versatile Operating Modes

The DS-3WR3N offers multiple operation modes to suit various networking requirements:

• Wireless Router Mode – standard mode to share an internet connection with multiple devices.
• Wireless Repeater Mode – extends the range of an existing wireless network.
• Client + AP Mode – connects to a wired network and redistributes it wirelessly.
• WISP Mode – connects wirelessly to an ISP and shares internet with local clients.
• AP Mode – functions as a dedicated access point for network expansion.

Additional features include a DHCP server, guest network configuration, signal adjustment, and Wi-Fi scheduling, providing users with the flexibility to control and optimize their network effectively.

Security and Management

The DS-3WR3N supports robust security protocols, including WPA-PSK/WPA2-PSK and WPA/WPA2, helping protect the network from unauthorized access. Users can also hide the SSID to further enhance security. Management is straightforward through a web-based interface, which allows for easy configuration, firmware upgrades, and monitoring of system logs.

The router supports multiple WAN connection types, including DHCP, Static IP, and PPPoE, ensuring compatibility with a wide range of internet service providers and network environments.

Conclusion

The DS-3WR3N 300M Wireless Router is an efficient and versatile networking device designed to deliver stable wireless connectivity in home or small office environments. Its compact design, reliable dual-band performance, multiple operation modes, and robust security features make it an ideal choice for users seeking affordable yet high-quality Wi-Fi. Whether for standard internet browsing, streaming, or connecting multiple smart devices, the DS-3WR3N ensures a seamless networking experience with easy setup, reliable coverage, and dependable performance.
