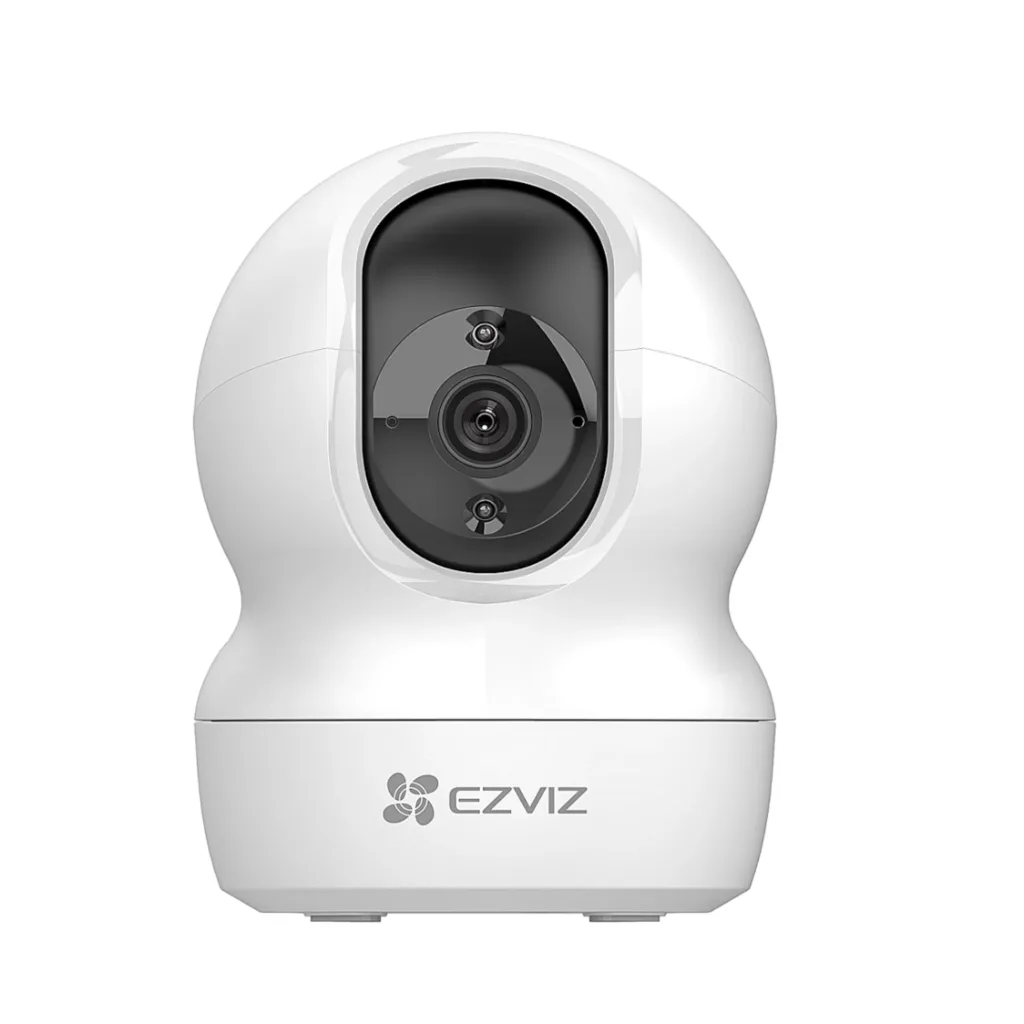

EZVIZ TY1 2K+ Smart PTZ Camera

The EZVIZ TY1 2K+ is a high-performance indoor smart camera designed to provide reliable home and office security. Combining 2K+ high-definition video, motorized pan-and-tilt control, and intelligent AI detection, it delivers comprehensive monitoring with crisp clarity and minimal blind spots. With flexible storage options, two-way audio, and secure Wi-Fi connectivity, the TY1 2K+ ensures that your indoor environment is continuously monitored, safe, and accessible from anywhere.

Superior Video Quality

Equipped with a 1/2.7″ Progressive Scan CMOS sensor, the TY1 2K+ captures clear and detailed video. Its 4mm F1.6 fixed lens provides a wide 82° horizontal, 48° vertical, and 98° diagonal field of view, ensuring extensive room coverage. The camera supports a maximum resolution of 2304 × 1296 pixels, providing sharp, high-definition imagery suitable for identifying faces, objects, and movements with precision. The self-adaptive shutter automatically adjusts to lighting conditions for consistent video quality.

Pan and Tilt Functionality

The TY1 2K+ features motorized pan-and-tilt capabilities, allowing users to remotely control the camera’s view via the EZVIZ app. This feature provides nearly full-room coverage without requiring multiple cameras. It also supports preset positions and patrol modes, ensuring that critical areas are always monitored. With its compact design, it can be placed on shelves, walls, or desks, adapting seamlessly to different indoor environments.

Day & Night Surveillance

The camera is equipped with an IR-cut filter with auto-switch, enabling smooth transitions between day and night modes. It also incorporates 3D Digital Noise Reduction (DNR) and Digital Wide Dynamic Range (WDR) technology to maintain image clarity in low-light or high-contrast conditions. With a maximum infrared range of 10 meters (33 ft.), the TY1 2K+ ensures reliable surveillance in both bright and dark settings.

Intelligent Smart Features

The TY1 2K+ integrates advanced AI-powered detection capabilities to reduce false alarms and enhance security efficiency:

• Motion Detection – Notifies you when movement is detected.
• Human Shape Detection – Differentiates humans from objects or pets.
• Human Shape Tracking – Follows detected human movement within the camera view.
• Loud Noise Detection – Alerts you to unusual sounds in the monitored area.
• Patrol Mode – Automatically cycles through preset positions for full coverage.

These intelligent features allow you to focus on real security events while minimizing unnecessary notifications.

Flexible Storage Options

The TY1 2K+ supports microSD cards up to 512GB for local storage. For added convenience and security, it integrates with EZVIZ CloudPlay, offering cloud storage solutions for remote access and backup (subscription required). This dual-storage option ensures that important footage is safely stored and easily retrievable.

Connectivity and Network

The camera supports Wi-Fi IEEE802.11b/g/n on the 2.4 GHz band, with AP pairing for quick setup. Security protocols include WPA/WPA2 and WPA-PSK/WPA2-PSK, ensuring secure connections. Transmission rates support 11b: 11 Mbps, 11g: 54 Mbps, and 11n: 72 Mbps, with an output power of 19 dBm and antenna gain of 1.9 dBi. Wired Ethernet connectivity is also available via an RJ45 port, offering flexibility for different network setups.

Efficient and Reliable Operation

Powered by a DC 5V / 1A Type-C adapter, the camera consumes a maximum of 5W, making it energy-efficient. It operates reliably in temperatures from -10°C to 45°C (14°F to 113°F) with up to 95% non-condensing humidity. Its compact dimensions (88 × 88.2 × 119 mm) and lightweight design (218 g) make it easy to place or mount in a variety of indoor locations.

What’s in the Box

• TY1 2K+ Camera
• Power Adapter
• Power Cable
• Drill Template
• Mounting Plate
• EZVIZ Screw Kit
• Regulatory Information
• Quick Start Guide

Conclusion

The EZVIZ TY1 2K+ Smart PTZ Camera is a reliable, intelligent, and user-friendly solution for indoor surveillance. Its high-definition video, PTZ functionality, smart detection, and flexible storage options make it an ideal choice for homes and small offices seeking proactive and efficient security monitoring.
