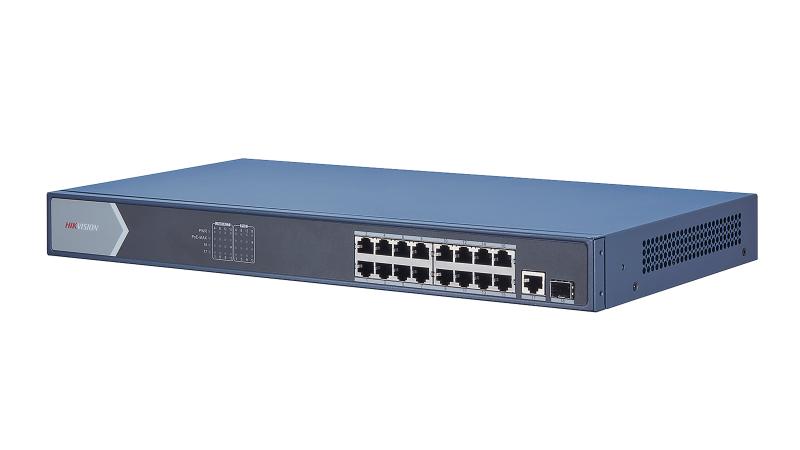

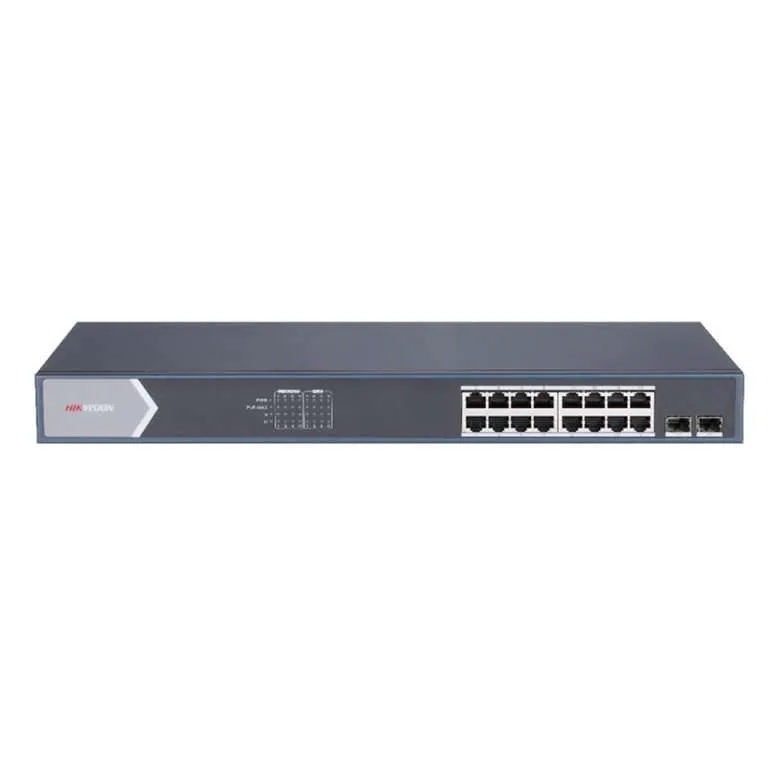

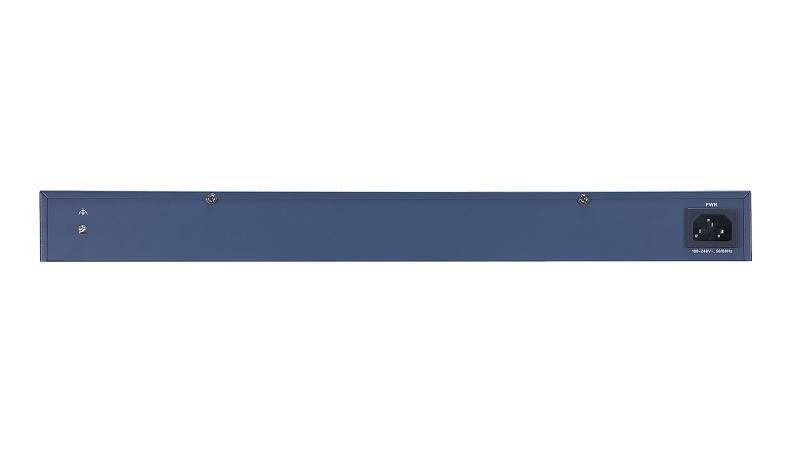

Hikvision DS-3E0518P-E 16-Port Gigabit Unmanaged PoE Switch

The Hikvision DS-3E0518P-E is a high-performance, unmanaged 16-port Gigabit PoE switch designed to meet the needs of modern network infrastructures. Combining robust power delivery, reliable data transmission, and ease of deployment, this switch is ideal for both small- and medium-sized enterprises, IP surveillance systems, and network expansions requiring high-speed connectivity with Power over Ethernet capabilities. Its thoughtful design ensures optimal performance while minimizing installation complexity, making it a perfect solution for professional-grade networking applications.

High-Speed Gigabit Connectivity

The DS-3E0518P-E features 16 Gigabit PoE ports, alongside one dedicated Gigabit RJ45 uplink port and one Gigabit SFP fiber optical port, enabling versatile connectivity options. Each port supports 10/100/1000 Mbps transmission speeds, ensuring smooth, high-speed network performance across devices. With wire-speed forwarding and non-blocking architecture, the switch guarantees low-latency, uninterrupted data transfer, making it ideal for bandwidth-intensive applications such as video streaming, large file transfers, and IP camera networks.

The inclusion of an SFP fiber port allows long-distance network expansion without signal degradation, giving users the flexibility to integrate the switch into both small office networks and larger enterprise environments. The RJ45 uplink port provides easy connection to routers, servers, or other switches, creating a seamless network topology.

Power over Ethernet (PoE) Support

The Hikvision DS-3E0518P-E is fully compliant with the IEEE 802.3af/at PoE standards, allowing it to supply power directly to connected devices over Ethernet cables. This eliminates the need for separate power adapters and simplifies installation for IP cameras, VoIP phones, wireless access points, and other PoE-enabled devices.

With PoE power management, the switch can intelligently allocate power to connected devices, ensuring optimal efficiency and preventing overloading. Each port is capable of supplying sufficient power for high-performance devices, while built-in 6 KV surge protection safeguards the switch and connected equipment against power surges and electrical spikes, enhancing network reliability and protecting valuable hardware.

Robust and Reliable Performance

Built with a solid, high-strength metal shell, the DS-3E0518P-E is engineered for durability and long-term operation in various environments, including server rooms, offices, and surveillance setups. The rugged construction ensures resistance to wear, vibration, and accidental impacts, making it suitable for continuous 24/7 operation.

The switch employs a store-and-forward architecture, which effectively reduces packet loss and improves data transmission reliability. This method ensures that each data packet is fully received, checked for errors, and then forwarded to its destination, providing superior performance and minimizing network disruptions.

Standards Compliance and Compatibility

This unmanaged switch supports a wide array of network standards, including:

• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z, ensuring broad compatibility with existing network devices.
• Full-duplex and half-duplex modes to adapt to varying network traffic conditions.

These standards compliance features make the DS-3E0518P-E highly versatile, allowing integration into diverse networking setups without the need for complex configuration.

Ease of Deployment and Maintenance

As an unmanaged switch, the DS-3E0518P-E requires no advanced configuration, making it plug-and-play ready. Users can quickly deploy the switch and immediately benefit from high-speed connectivity and PoE support. The simple installation process reduces downtime and eliminates the need for specialized IT knowledge, which is especially advantageous in environments requiring rapid deployment, such as new office setups, surveillance networks, or temporary events.

LED indicators on each port provide real-time status information on link activity, PoE status, and network connectivity, allowing for quick diagnostics and monitoring. This visibility simplifies troubleshooting and ensures the network is operating efficiently.

Energy Efficiency and Network Optimization

Designed with energy-saving technologies, the DS-3E0518P-E minimizes power consumption without compromising performance. PoE efficiency and intelligent power allocation reduce wasted energy, contributing to cost savings and environmentally friendly operation. Additionally, the switch’s non-blocking architecture ensures maximum data throughput, avoiding network bottlenecks and maintaining optimal performance for multiple connected devices.

Applications

The DS-3E0518P-E is ideal for a wide range of applications, including:

• IP Surveillance Networks: Power and connect multiple IP cameras while maintaining high-definition video transmission.
• Enterprise Offices: Provide reliable Gigabit connectivity for desktops, laptops, and VoIP devices.
• Wireless Networks: Supply power to access points and expand wireless coverage seamlessly.
• Small- to Medium-Sized Businesses: Simplify network setup with plug-and-play deployment while maintaining high performance.

Conclusion

The Hikvision DS-3E0518P-E 16-Port Gigabit Unmanaged PoE Switch is a versatile, high-performance networking solution that delivers both reliable data transmission and flexible PoE power distribution. Its robust construction, surge protection, and plug-and-play simplicity make it ideal for IP surveillance systems, enterprise offices, and network expansions requiring fast, stable, and energy-efficient connectivity. Whether powering IP cameras, wireless access points, or other PoE-enabled devices, this switch ensures a dependable and high-speed network environment for professional installations.
