Hikvision DS-7108NI-Q1/8P/M 8-Channel Mini 1U 8 PoE NVR

The Hikvision DS-7108NI-Q1/8P/M is a compact yet powerful 8-channel Mini 1U Network Video Recorder (NVR) designed for small to medium-scale IP surveillance applications. With built-in Power over Ethernet (PoE) ports, high-definition video recording, and efficient bandwidth management, it simplifies installation while delivering professional-grade performance. This NVR is ideal for businesses, offices, retail shops, and residential users seeking reliable and efficient video security solutions.

Video and Audio Input

The DS-7108NI-Q1/8P/M supports up to 8 IP video channels with a maximum resolution of 4 MP per input. This ensures clear and detailed footage for critical monitoring scenarios. Its ability to integrate directly with Hikvision IP cameras and third-party ONVIF-compliant devices offers flexibility for various surveillance setups.

With support for high-definition streams, users can benefit from optimized video clarity, making it easier to identify people, objects, and activities. This makes the NVR especially suitable for security applications in retail stores, offices, warehouses, and homes.

Network and Bandwidth Management

Equipped with strong networking capabilities, this NVR provides an incoming bandwidth of 60 Mbps and an outgoing bandwidth of 60 Mbps. This balance ensures smooth live viewing, recording, and remote access without compromising video quality.

The built-in 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface offers stable and efficient connectivity, making the device easy to integrate into existing networks. The NVR is also designed with 8 independent PoE ports to directly power connected cameras, eliminating the need for separate power adapters and streamlining cabling.

Video and Audio Output

The DS-7108NI-Q1/8P/M provides one HDMI and one VGA output, supporting multiple resolutions including 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, and 1024 × 768 /60Hz. These outputs allow users to connect the NVR to monitors for real-time viewing or playback with clear and sharp image quality.

With synchronous playback of up to 8 channels, users can review multiple camera feeds simultaneously, making it easier to analyze events across different areas at once. This function enhances operational efficiency in monitoring environments.

Decoding and Recording

The NVR supports advanced video compression standards including H.265+, H.265, H.264+, and H.264. This ensures efficient storage management and reduced bandwidth usage without sacrificing video quality.

Decoding capability includes:

• 1 channel at 4 MP
• 2 channels at 1080p

The supported recording resolutions range from 4 MP down to QCIF, covering formats such as 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, and CIF. This wide compatibility ensures flexibility depending on system requirements and storage limitations.

Storage and Expansion

The DS-7108NI-Q1/8P/M includes one SATA interface that supports hard drives with capacities of up to 6 TB each. This allows for extended recording time, making it practical for businesses or homeowners who need long-term storage.

External connectivity is also supported with two USB 2.0 interfaces, allowing users to export video footage, connect storage devices, or perform system upgrades conveniently.

PoE Capability

One of the standout features of this NVR is its built-in 8 independent 10/100 Mbps PoE interfaces, compliant with IEEE 802.3af/at standards. The total PoE budget is 75W, enabling simultaneous power supply to multiple IP cameras. This reduces infrastructure costs and simplifies setup by combining power and data transmission into a single cable.

Power, Design, and Build

The NVR operates on a 48 VDC power supply, with a total consumption of ≤ 90 W (including PoE) and ≤ 10 W without PoE or a hard disk. This makes it energy-efficient while still supporting multiple devices.

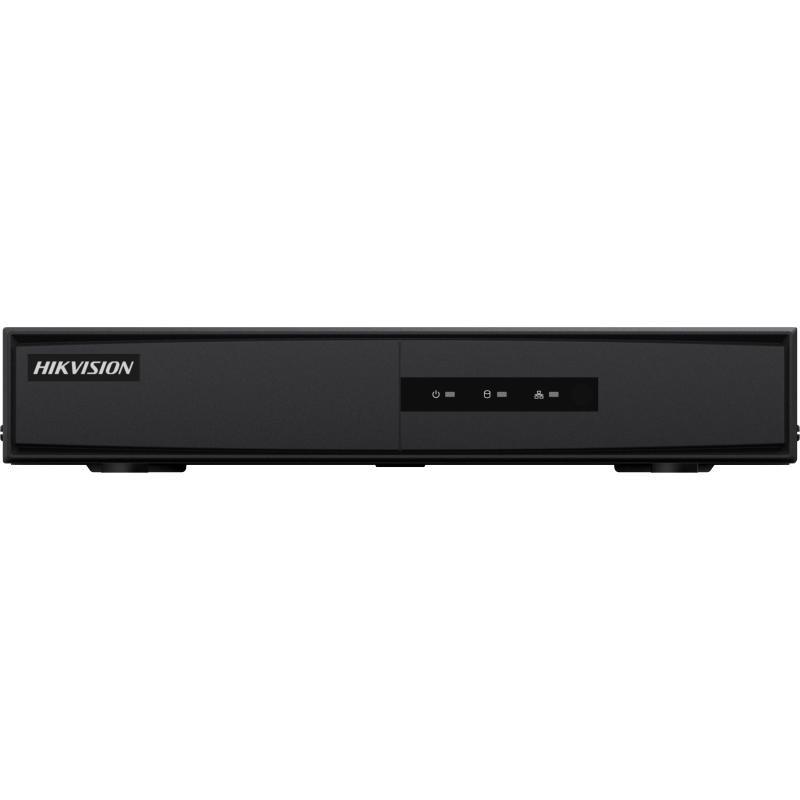

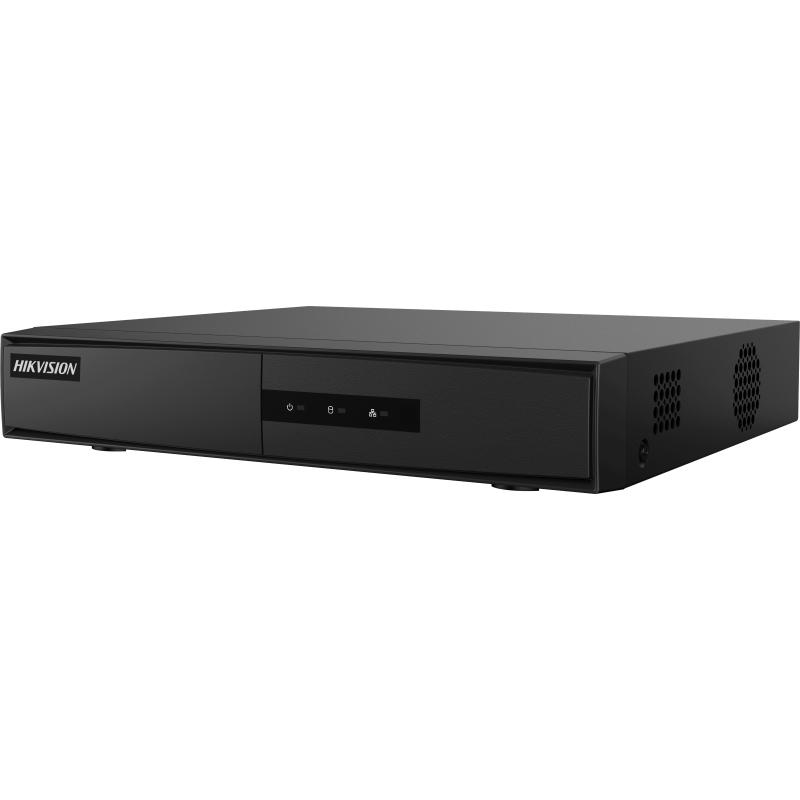

Its compact Mini 1U chassis design measures 260 × 225 × 48 mm (10.2″ × 8.9″ × 1.9″) and weighs just ≤ 1 kg (2.2 lb.) without HDD, making it easy to install in small racks, desks, or secure enclosures. The solid build quality ensures durability for 24/7 operation.

Environmental Adaptability

The DS-7108NI-Q1/8P/M is designed to operate in various conditions, with a working temperature range of -10°C to +55°C (14°F to 131°F) and a humidity tolerance of 10% to 90% (non-condensing). This makes it suitable for use in diverse environments such as offices, retail spaces, or controlled warehouse areas.

Conclusion

The Hikvision DS-7108NI-Q1/8P/M 8-Channel Mini 1U 8 PoE NVR is a feature-rich, cost-effective, and reliable recording solution tailored for small to medium surveillance systems. With built-in PoE, advanced video compression, flexible storage options, and simultaneous playback, it provides everything needed for efficient and professional video management. Compact in design yet powerful in performance, this NVR is an excellent choice for users seeking simplicity, reliability, and scalability in their security infrastructure.
