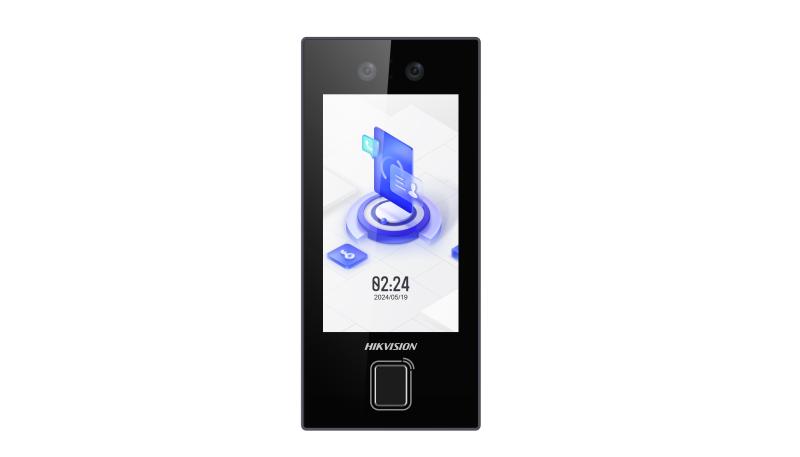

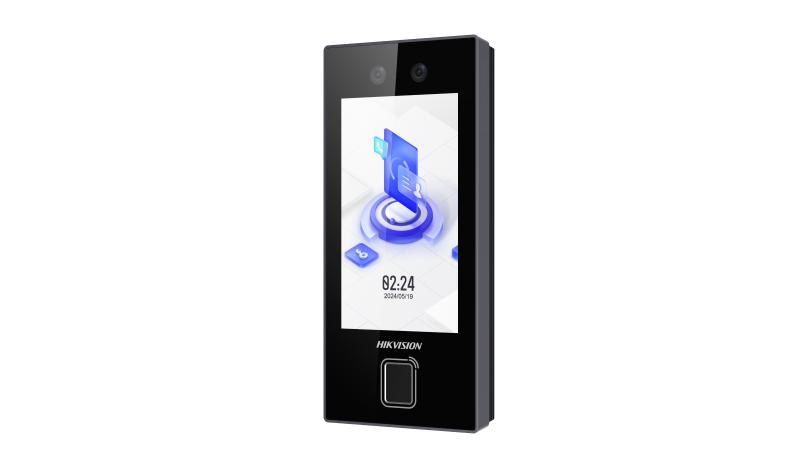

Hikvision DS-K1T344MBFWX-E1 Value Series Face Access Terminal

The Hikvision DS-K1T344MBFWX-E1 is a cutting-edge face access terminal from the Hikvision Value Series, designed to deliver reliable, fast, and secure access control for modern businesses, institutions, and residential facilities. Built with advanced biometric capabilities, multi-factor authentication, and robust durability, this terminal is ideal for organizations seeking both convenience and enhanced security in a cost-effective package.

System and Display

The device runs on a Linux operating system, ensuring stability, performance, and security. It features a 4.5-inch LCD touch display with a resolution of 480 × 854, providing a clear, responsive interface for users. The touch operation ensures intuitive navigation for enrollment, authentication, and system management. Its dual-lens camera system supports both PAL (default) and NTSC video standards, making it adaptable to various environments.

Network and Interfaces

Connectivity is a strong point of the DS-K1T344MBFWX-E1. The device supports wired networking at 10/100 Mbps, as well as Wi-Fi, ensuring flexible installation options. Additionally, it includes Bluetooth connectivity for enhanced versatility in communication.

For system integration, the terminal provides multiple interfaces:

• Alarm input: 2 channels
• Alarm output: 1 channel
• RS-485 and Wiegand (single-direction input) for system compatibility
• PoE (IEEE 802.3at standard), enabling power and data over a single cable
• Lock control, exit button, and door contact input for comprehensive door access management
• Tamper alarm for device protection
• USB port for data transfer and firmware upgrades

These features make the terminal a powerful component in both standalone and integrated security systems.

Capacity and Performance

The DS-K1T344MBFWX-E1 is designed to handle medium to large-scale deployments with high efficiency. It supports:

• User capacity: 3,000
• Card capacity: 3,000 (M1 card, 13.56 MHz)
• Face capacity: 3,000
• Fingerprint capacity: 3,000
• Event capacity: 150,000 records

This ensures that even busy facilities with high daily traffic can rely on the system for secure, fast, and accurate access control.

Authentication and Recognition

The terminal provides multi-factor authentication, allowing access through face recognition, fingerprint verification, card scanning, and QR code recognition. Users can scan a QR code via the integrated camera for quick entry, making it versatile for visitor management.

Key recognition features include:

• Face recognition time: < 0.2 seconds per user
• Accuracy rate: Greater than 99%
• Recognition distance: 0.3 to 1.5 meters

The system also supports face anti-spoofing technology, which prevents fraudulent access using photos, videos, or masks. This advanced feature ensures a high level of security across all deployments.

Audio and Communication

The DS-K1T344MBFWX-E1 is equipped with two-way audio, enabling real-time communication between the user and the control center. It also includes audio prompts to guide users during access, and time synchronization for accurate event logging across multiple devices in a system.

Build and Durability

Built with durability in mind, this access terminal has an IP65 protection rating, making it resistant to dust and water ingress. This ensures reliable operation in both indoor and outdoor environments. It is compact and lightweight, with dimensions of 165.2 × 75.7 × 25 mm (6.5″ × 2.98″ × 0.98″), making it easy to install via wall mounting.

The device is designed to withstand harsh conditions, operating in temperatures from -30 °C to 60 °C (-22 °F to 140 °F) and humidity levels between 10% to 90% (non-condensing). Despite its ruggedness, it remains lightweight, with a net weight of 0.30 kg and a gross weight of 0.60 kg, simplifying transportation and installation.

Power and Efficiency

The device can be powered by 12 VDC, 1 A or through standard PoE, offering flexibility and ease of deployment. PoE support reduces cabling requirements, cutting installation costs and time.

Language Support

To meet global deployment needs, the terminal supports multiple languages, including English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Turkish, French, Traditional Chinese, Kazakh, Uzbek, and more. This makes the device highly adaptable for international projects.

Conclusion

The Hikvision DS-K1T344MBFWX-E1 is a reliable and versatile biometric access control terminal that combines speed, accuracy, and durability. With its advanced recognition capabilities, comprehensive interface options, and robust construction, it is the perfect solution for businesses, schools, government institutions, and residential complexes looking to upgrade their access control systems with a secure and user-friendly device.
