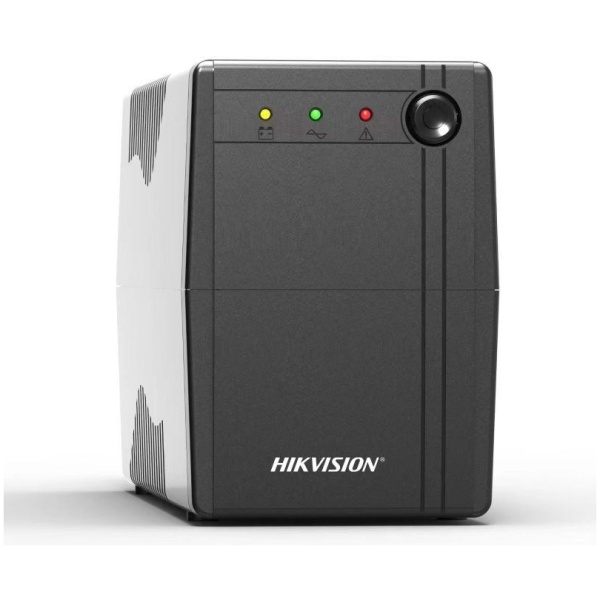

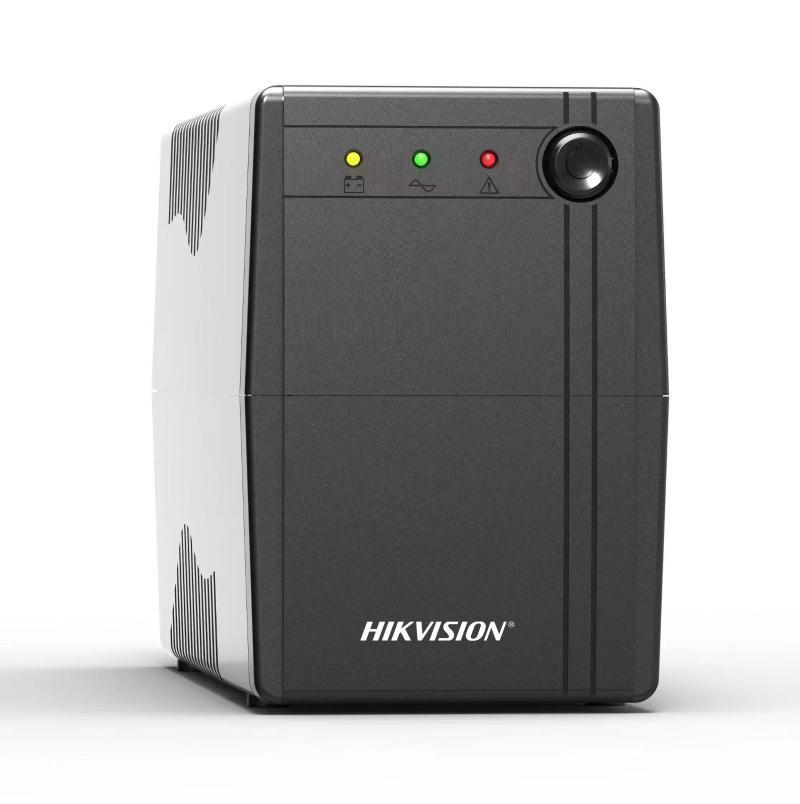

Hikvision DS-UPS1000

1000 VA / 600 W Uninterruptible Power Supply (UPS)

The Hikvision DS-UPS1000 is a reliable and compact uninterruptible power supply designed to provide seamless backup power for security systems, computers, networking equipment, and other essential electronics. With a capacity of 1000 VA / 600 W, this UPS ensures continuous operation during power interruptions while offering advanced protective features against surges, overloads, and short circuits. It is an ideal solution for maintaining system stability in homes, offices, and small-to-medium business environments.

Power Capacity

The DS-UPS1000 is engineered to deliver 1000 VA / 600 W of output power, making it suitable for powering DVRs, NVRs, CCTV cameras, routers, desktop PCs, and other essential devices. This power rating strikes a balance between energy efficiency and reliable performance, ensuring uninterrupted operation for critical systems during outages.

Input Specifications

• Input Voltage Range: 140 VAC to 290 VAC
• Input Frequency: 50/60 Hz self-adaptive

The wide input voltage range allows the UPS to handle fluctuating mains supply conditions without immediately switching to battery mode, which prolongs battery life. Its self-adaptive frequency recognition ensures compatibility across different regions.

Plug Types Supported

The DS-UPS1000 is versatile in design, offering compatibility with multiple plug standards, including:

• AU Type I
• Type H
• Type B (NEMA 5-15)
• UK Type G
• Type L (10A)
• Schuko

This adaptability makes it suitable for global deployment in different electrical environments.

Output Specifications

• Output Frequency: 50/60 Hz ± 0.5 Hz (self-adaptive)
• Output Voltage Range: 210 VAC to 235 VAC
• Transfer Time: ≤ 10 ms
• Waveform: PWM (Pulse Width Modulation)

The fast transfer time of less than 10 ms ensures a smooth switchover from utility power to battery backup, preventing disruption to connected devices. The PWM waveform output provides stable power delivery, ensuring equipment safety.

Outlet Types & Numbers

• Outlet Types: AU Type I, Type H, Type B (NEMA 5-15), Universal, Type L (10/16A)
• Outlet Numbers: Battery outlet × 4 & Bypass outlet × 2

This configuration allows for multiple devices to be supported simultaneously, with some connected to backup power and others on bypass as needed.

Battery

• Battery Type: 12 V/9 Ah lead-acid battery
• Recharge Time: 4–6 hours to recover 90% capacity

The internal sealed lead-acid battery provides dependable backup performance with a relatively quick recharge cycle.

Typical Backup Time

• 60 W load: 60 minutes
• 150 W load: 15 minutes
• 300 W load: 2 minutes

This runtime versatility ensures that low-power devices can remain operational for extended periods, while higher-power devices are supported long enough for proper shutdown or switchover to generators.

Protection Features

The DS-UPS1000 offers comprehensive electrical protection to safeguard connected devices and the UPS itself:

• Surge protection
• Overload protection
• Discharge protection
• Short-circuit protection

These safeguards protect both sensitive electronics and the UPS from damage during power fluctuations or electrical faults.

Indicators & Alarms

LED Indicators

• AC Mode: Solid green
• Charging Mode (DC Mode): Solid red
• Overloading Mode: Flashing yellow

Audible Alarms

• Charging Mode (DC): Beeps every 8 seconds
• Low Battery: Beeps every second
• Overloading: Beeps every 0.5 seconds
• Fault: Continuous sounding

These visual and audible alerts provide clear, real-time feedback on the UPS status, helping users respond quickly to any issues.

General Specifications

• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Operating Humidity: 30% to 90% (non-condensing)
• Dimensions: 274 mm × 95 mm × 139 mm (10.79″ × 3.74″ × 5.47″)
• Weight: Approx. 5.4 kg (11.9 lb)

Its compact form factor makes it space-efficient for desktop or floor placement, while the moderate weight ensures portability without compromising battery size and performance.

Key Advantages

• Provides stable backup power for up to 60 minutes at light loads.
• Supports multiple outlet types, making it versatile in international applications.
• Fast transfer time ≤ 10 ms ensures uninterrupted operation.
• Equipped with full-spectrum protection for connected devices.
• LED indicators and alarms give clear operational feedback.
• Compact, durable, and easy to install.

Conclusion

The Hikvision DS-UPS1000 is more than just a backup power source—it is a comprehensive power management solution designed to safeguard critical devices against outages, surges, and fluctuations. Whether used in a home, office, or security environment, this UPS ensures reliability, efficiency, and peace of mind. With its 1000 VA / 600 W capacity, versatile plug and outlet support, intelligent protection features, and efficient battery backup, it is an excellent choice for users seeking a dependable uninterruptible power supply in a compact and practical form.
