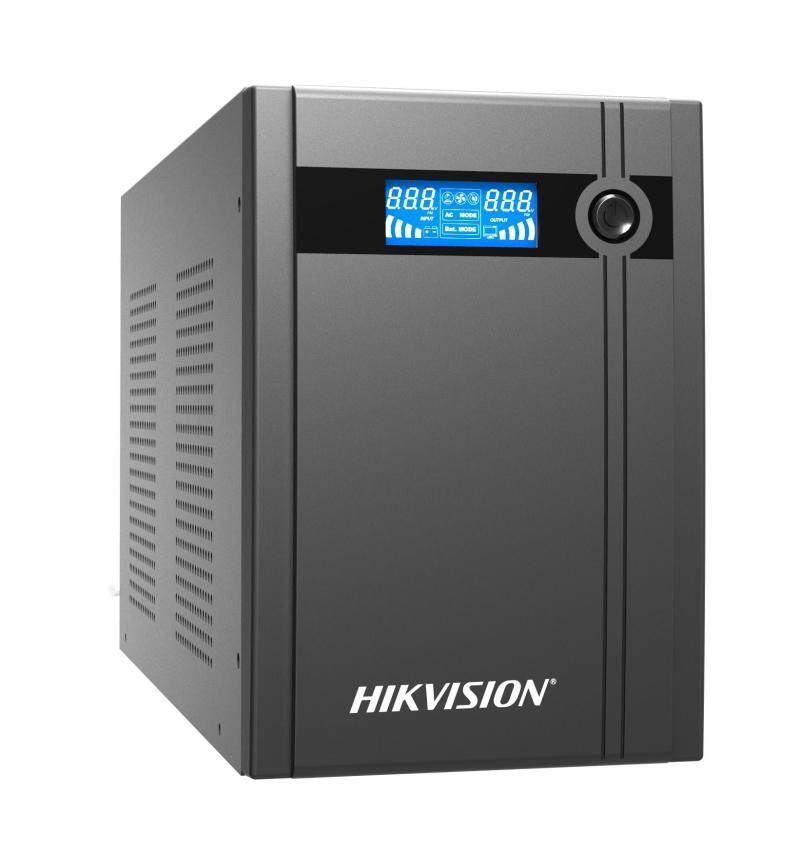

Hikvision DS-UPS3000

3000 VA / 1800 W Uninterruptible Power Supply

The DS-UPS3000 is a reliable and high-capacity Uninterruptible Power Supply (UPS) designed to deliver continuous, stable, and safe power for critical equipment. With a power capacity of 3000 VA / 1800 W, this UPS is ideal for small server rooms, office equipment, security systems, and sensitive electronics requiring robust backup protection against outages, surges, and fluctuations.

Power Capacity

• UPS Capacity: 3000 VA / 1800 W
  The DS-UPS3000 delivers ample power output to keep multiple devices running smoothly during power interruptions, ensuring business continuity and safeguarding critical workloads.

Input Specifications

• Input Voltage Range: 140 VAC – 290 VAC
• Input Frequency: 50/60 Hz, self-adaptive
• Plug Types Supported:
  • AU TYPE I
  • TYPE H
  • TYPE B (NEMA 5-15)
  • TYPE L (10A)
  • UK TYPE G
  • Schuko

This wide compatibility ensures global adaptability, making the UPS suitable for diverse power environments.

Output Specifications

• Output Voltage Range: 210 VAC – 235 VAC
• Output Frequency: 50/60 Hz ± 0.5 Hz, self-adaptive
• Transfer Time: ≤ 10 ms for seamless switching between mains and battery
• Waveform: PWM (Pulse Width Modulation)

Outlet Types & Numbers

• Outlet Options: AU TYPE I, TYPE H, Universal, TYPE L (10/16A)
• Total Outlets: 4

This ensures compatibility with a wide range of connected devices while delivering consistent, regulated power.

Battery Performance

• Battery Type: 12 V/9 Ah × 4 pcs lead-acid battery
• Recharge Time: 6–8 hours to recover 90% capacity

Typical Backup Times

• At 100 W load: 150 minutes
• At 600 W load: 15 minutes
• At 900 W load: 6 minutes

The flexible backup time allows users to complete critical tasks, safely shut down systems, or maintain essential operations during short or extended outages.

Communication & Interface

• Communication Port: USB for monitoring and system integration
• Display: LCD screen provides real-time system information, including:
  • Input Voltage
  • Output Voltage
  • Battery Capacity
  • Load Level

This user-friendly interface ensures easy monitoring and management of power conditions.

Protection Features

The DS-UPS3000 offers full protection mechanisms to ensure maximum safety for connected devices:

• Surge Protection – Shields equipment from sudden voltage spikes.
• Overload Protection – Prevents damage from excessive loads.
• Discharge Protection – Extends battery lifespan by managing discharge cycles.
• Short Circuit Protection – Ensures safety in case of faults.

Audible Alarm Indicators

The UPS is equipped with clear audible alarms to notify users of system conditions:

• Charging Mode (DC mode): Beeps every 8 seconds
• Low Battery: Beeps every 1 second
• Overload: Beeps every 0.5 seconds
• Fault Mode: Continuous alarm

These alerts ensure timely awareness and response to critical power issues.

Environmental & General Specifications

• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Operating Humidity: 30% – 90% (non-condensing)
• Dimensions: 412 mm × 145 mm × 210 mm (16.22″ × 5.71″ × 8.27″)
• Weight: Approx. 18.5 kg (40.8 lb)

Built with durability in mind, the UPS is suited for environments ranging from small offices to technical rooms.

Advantages of DS-UPS3000

1. High Power Output – Supports demanding loads up to 1800 W.
2. Wide Input Range – Handles fluctuating input voltages, ensuring stable performance.
3. Extended Backup – Provides over 2 hours of runtime for light loads, sufficient to maintain essential systems.
4. Full Protection – Safeguards connected devices against common electrical hazards.
5. User-Friendly Monitoring – LCD display and USB port allow real-time tracking and remote integration.
6. Compact Design – 1U mini-tower form factor saves space while maintaining powerful functionality.

Conclusion

The DS-UPS3000 is a powerful, efficient, and versatile UPS solution for protecting critical equipment from power disruptions. With its 3000 VA capacity, intelligent LCD monitoring, fast recharge time, multiple outlet compatibility, and comprehensive safety features, it ensures uninterrupted operations for IT systems, surveillance setups, and essential business applications. Whether used in homes, offices, or small server environments, this UPS provides peace of mind by combining reliability with advanced power management technology.
