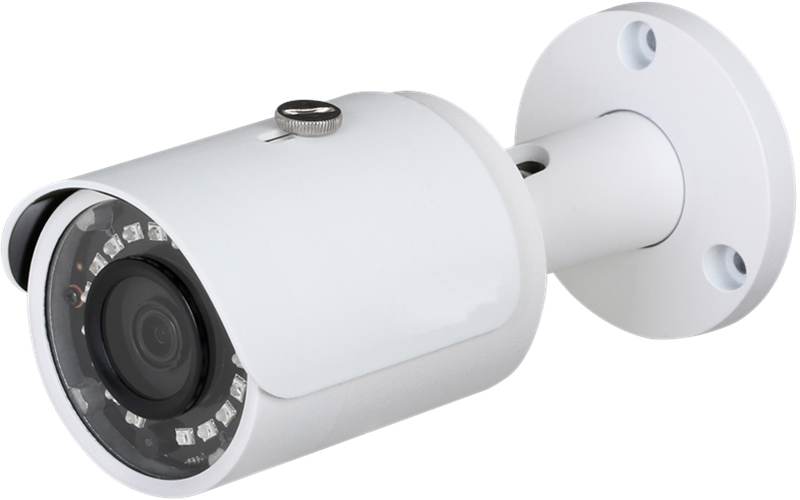

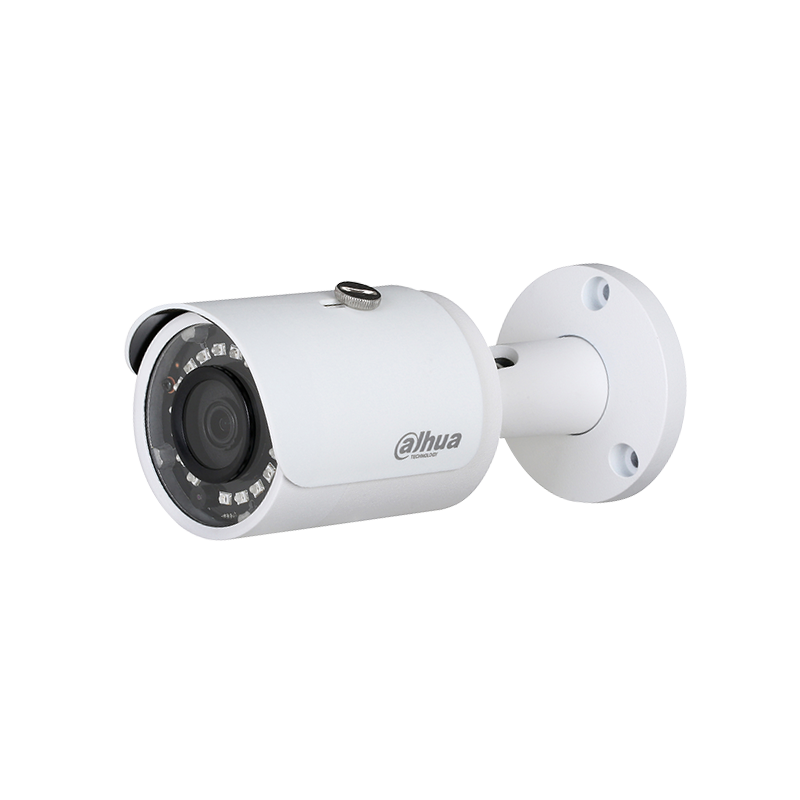

Dahua HFW1230S-S5 Bullet IP Camera – 2MP Full HD Outdoor Security Solution

When it comes to protecting your property, clarity, durability, and reliable performance are non-negotiable. The Dahua HFW1230S-S5 Bullet IP Camera delivers all three in an affordable package designed for both residential and commercial surveillance. Built with Dahua’s proven technology, this 2MP outdoor bullet camera is engineered to provide sharp video quality, intelligent monitoring features, and seamless integration with modern security systems.

High-Quality Full HD Imaging

At the heart of the camera is a 1/2.8″ CMOS sensor with a resolution of 2 megapixels (1920 × 1080). This ensures clear and detailed footage, whether you’re monitoring a home, office, shop, or warehouse. The fixed 2.8 mm lens offers a wide 102° viewing angle, covering large areas with minimal blind spots. The camera supports a main stream recording at 1080p and 25 fps, as well as a sub stream at D1 resolution, ensuring efficient bandwidth use without compromising quality.

Powerful Night Vision up to 30m

Security doesn’t stop when the sun goes down. The HFW1230S-S5 features advanced infrared (IR) illumination with a range of up to 30 meters, providing clear black-and-white imaging in complete darkness. Thanks to the ICR (Infrared Cut Filter) day/night mode, the camera automatically adjusts to lighting conditions, ensuring accurate color reproduction during the day and enhanced IR performance at night. With a low light sensitivity of 0.01 Lux @ F2.0, it performs well even in dimly lit environments.

Smart Video Features

Beyond just recording, this IP camera is equipped with intelligent features designed to enhance monitoring efficiency:

• Motion Detection – Alerts you instantly when movement is detected.
• 3D-DNR (Digital Noise Reduction) – Reduces image noise for clear footage in low light.
• BLC (Back Light Compensation) – Adjusts exposure to handle scenes with strong light contrast.
• HLC (Highlight Compensation) – Reduces glare from headlights or spotlights.
• DWDR (Digital Wide Dynamic Range) – Improves visibility in scenes with both bright and dark areas.
• ROI (Region of Interest) – Focuses on key areas to optimize bandwidth and storage.
• Privacy Masking – Blocks sensitive areas from being recorded.

These smart modes make the Dahua HFW1230S-S5 a versatile tool for environments ranging from retail stores to garages and warehouses.

Connectivity & Integration

This camera is built for seamless integration with both Dahua and third-party systems. It supports:

• Network Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, SMTP, FTP, DHCP, DNS, NTP, Multicast.
• Compatibility: ONVIF (Profile S/Profile T), CGI, P2P, and Genetec.
• Mobile Access: Manage and view footage through the DMSS mobile app, compatible with iOS and Android.
• Browser Support: Chrome, Firefox, Safari, Edge, and Opera.

With dual streaming capability and support for advanced codecs including H.264, H.264+, H.265, and H.265+, you’ll enjoy efficient compression and reduced storage requirements while maintaining high-quality video.

Power & Installation Flexibility

Designed for easy installation, the Dahua HFW1230S-S5 can be mounted on walls, ceilings, or overhead surfaces. The camera supports both 12V DC power supply and PoE (802.3af), giving flexibility depending on your setup. With a low power consumption of only 5.5W, it is energy-efficient while still delivering robust performance.

Rugged Design for All Environments

This bullet IP camera is built to last. Its IP67-rated housing ensures full protection against dust and water, making it suitable for outdoor use in all weather conditions. With an operating temperature range of -40°C to +60°C, the camera performs reliably in both freezing winters and hot summers. The durable metal and plastic body weighs just 390 g, making it lightweight yet sturdy.

DORI Performance

Dahua uses the DORI (Detection, Observation, Recognition, Identification) standard to help determine how far the camera can effectively capture details:

• Detection: up to 38.6 m
• Observation: up to 15.4 m
• Recognition: up to 7.7 m
• Identification: up to 3.9 m

This ensures users can accurately match their security needs with the camera’s monitoring capabilities.

Versatile Applications

Whether for homes, offices, shops, warehouses, production facilities, or garages, the Dahua HFW1230S-S5 delivers dependable surveillance. With its combination of Full HD resolution, smart functions, and weatherproof design, it provides peace of mind for a wide range of applications.

Conclusion

The Dahua HFW1230S-S5 Bullet IP Camera is a cost-effective yet professional-grade surveillance solution. Offering Full HD clarity, smart video features, night vision, and durable weatherproof housing, it’s perfect for users who need reliable security monitoring without overpaying.

With wide compatibility, easy installation, and proven Dahua performance, this camera is an excellent choice for anyone looking to upgrade their security system.
