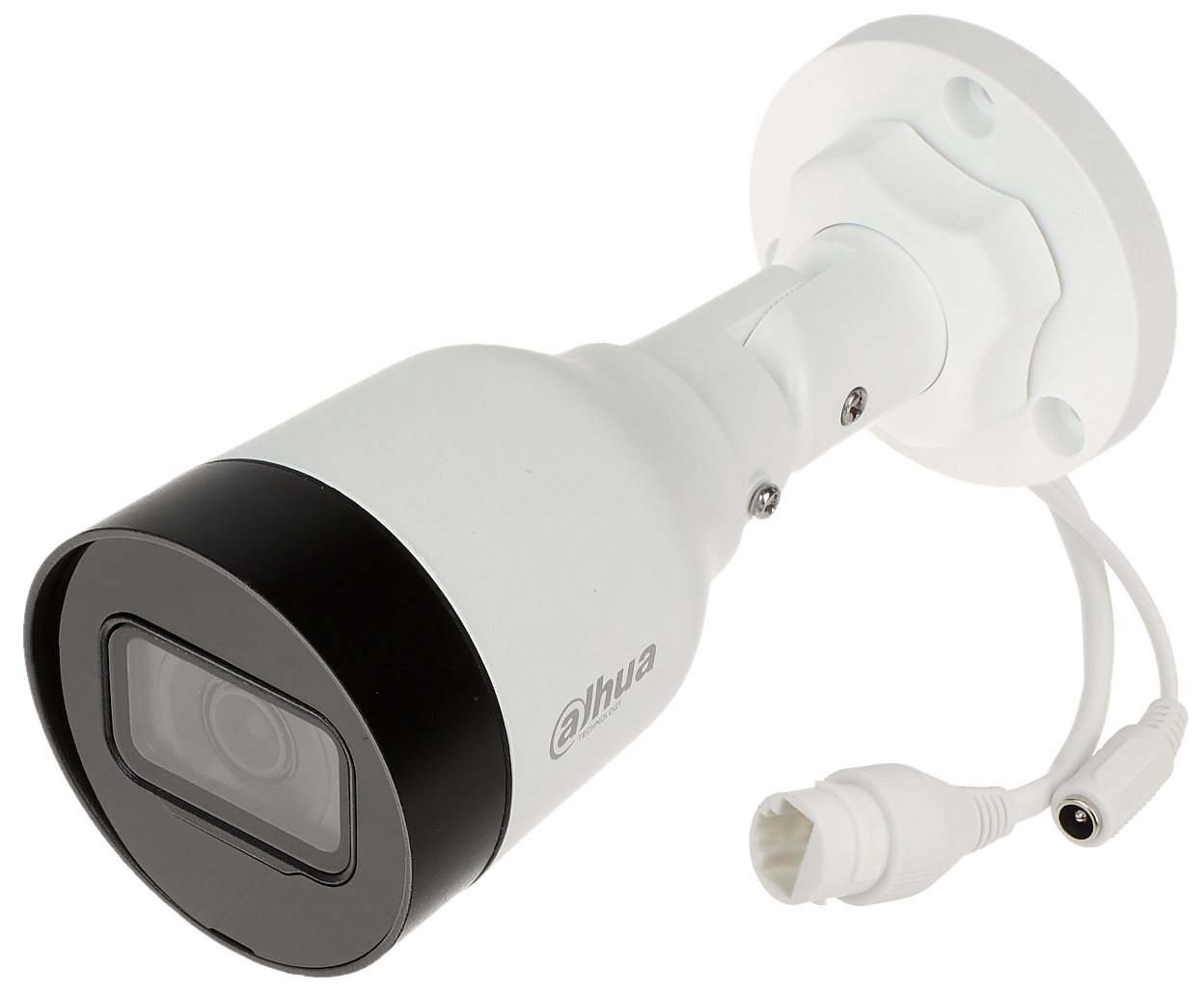

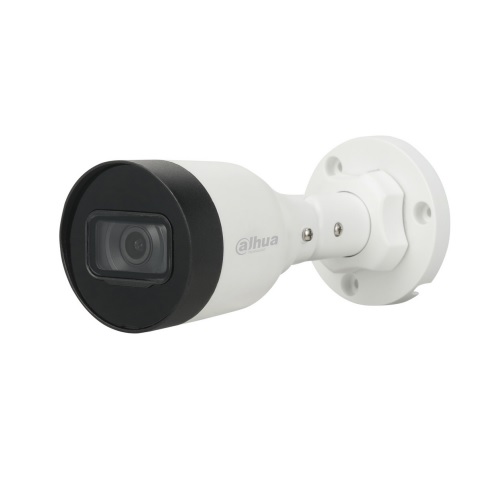

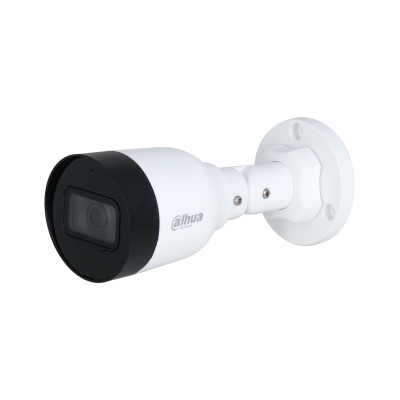

IPC-HFW1230S1-A-S5

2MP IR Fixed-Focal Network Bullet Camera

The IPC-HFW1230S1-A-S5 is a reliable, high-performance surveillance camera designed to deliver outstanding image quality, advanced security features, and flexible installation options. With its 2-megapixel resolution, smart video compression, built-in microphone, and rugged IP67-rated housing, this camera is an excellent choice for both residential and commercial security applications.

Superior Imaging Performance

Equipped with a 1/2.8” CMOS progressive scan sensor, the IPC-HFW1230S1-A-S5 captures high-definition video at a maximum resolution of 1920 × 1080 (Full HD). It provides sharp, clear images with accurate color reproduction during the day and excellent performance in low-light environments. The camera supports DWDR (Digital Wide Dynamic Range), 3D Noise Reduction, and multiple white balance modes, ensuring optimum clarity in challenging lighting conditions such as glare, backlight, or nighttime surveillance.

With a minimum illumination of 0.01 lux (color) and 0.001 lux (B/W), the camera delivers reliable visibility in near-dark environments. When lighting is completely absent, the integrated IR LED provides up to 30 meters (98 ft) of infrared night vision, ensuring continuous 24/7 monitoring.

Flexible Lens Options

The camera is available with 2.8 mm or 3.6 mm fixed lenses, giving users flexibility depending on installation needs. The 2.8 mm lens offers a wide field of view (Horizontal 102°, Vertical 54°), making it suitable for monitoring broad areas such as entrances or open spaces. The 3.6 mm lens provides a narrower angle (Horizontal 88°, Vertical 47°), making it ideal for focusing on specific zones such as hallways or checkout counters.

The DORI (Detect, Observe, Recognize, Identify) range gives clear guidance on practical deployment:

• 2.8 mm lens: Detect up to 38.6 m, recognize up to 7.7 m
• 3.6 mm lens: Detect up to 49.7 m, recognize up to 9.9 m

This makes it adaptable for both general monitoring and targeted surveillance.

Advanced Video Technology

The IPC-HFW1230S1-A-S5 supports multiple compression standards, including H.265, H.264, and MJPEG, ensuring efficient storage and bandwidth management. With Smart H.265+ and Smart H.264+, the camera reduces bitrates while preserving image quality, saving up to 70% in storage and transmission costs compared to standard compression.

The camera supports dual streams, with the main stream delivering 1080p at up to 30 fps and the sub-stream optimized for remote viewing. Bit rate control (CBR/VBR) allows further customization to balance quality and network resources.

Intelligent Functions

To enhance security, the camera includes motion detection with up to four configurable zones, Region of Interest (RoI) for bandwidth prioritization, privacy masking for up to four areas, and smart illumination control for optimized IR performance.

Additional image tools such as rotation (0°/90°/180°/270°), mirroring, and gain control allow installers to fine-tune video output. The camera also features BLC (Backlight Compensation), HLC (Highlight Compensation), and automatic day/night switching with an ICR (Infrared Cut Filter Removable) for accurate performance in all conditions.

Audio Capabilities

With a built-in microphone, the camera provides synchronized audio and video recording, enhancing situational awareness. It supports G.711A, G.711Mu, and G.726 audio codecs, delivering clear voice capture for monitoring environments where sound is critical, such as reception areas or entrances.

Robust Security and Networking

The camera is equipped with a comprehensive suite of cybersecurity protections, including configuration encryption, secure boot, trusted upgrades, digest authentication, and X.509 certificate management. This ensures data integrity and protection against unauthorized access.

It supports a wide range of network protocols such as IPv4/IPv6, HTTP, TCP/IP, UDP, RTSP, SMTP, FTP, DHCP, DNS, NTP, IGMP, and more. For interoperability, it is fully compliant with ONVIF (Profile S), CGI, P2P, and Genetec, making it compatible with various video management systems.

Easy Installation and Management

The IPC-HFW1230S1-A-S5 supports both 12 VDC and PoE (802.3af) power options, simplifying deployment and reducing cabling requirements. With a maximum power consumption of just 4.1 W, it is energy efficient and suitable for large-scale installations.

The camera can be managed through Smart PSS, DSS, and DMSS software, as well as popular browsers like Chrome, Firefox, and IE. Mobile clients for iOS and Android further enhance accessibility, allowing users to monitor live feeds on the go.

Rugged and Weatherproof Design

Built with a metal and plastic casing, the camera combines durability with lightweight construction. Its IP67 rating ensures complete protection against dust and water, making it ideal for both indoor and outdoor use. With an operating temperature range of –40 °C to +60 °C, it is capable of performing reliably in harsh weather conditions, from freezing winters to hot, humid climates.

The camera’s compact dimensions (162.6 × 70 × 70 mm) and lightweight design (0.22 kg net weight) allow for easy installation in various locations without drawing unnecessary attention.

Certifications

The IPC-HFW1230S1-A-S5 meets international quality and safety standards, including CE-LVD (EN 62368-1), CE-EMC (2014/30/EU), and FCC Part 15 Subpart B, ensuring compliance for global deployment.

Conclusion

The IPC-HFW1230S1-A-S5 2MP IR Fixed-Focal Network Bullet Camera combines high-quality imaging, efficient video compression, intelligent security features, and rugged reliability. Its flexible lens options, smart IR illumination, built-in microphone, and advanced cybersecurity protections make it an excellent choice for a wide range of surveillance applications.

From residential properties and small businesses to large commercial installations, this camera delivers dependable performance, ease of use, and cost efficiency—ensuring that your security system is always one step ahead.
