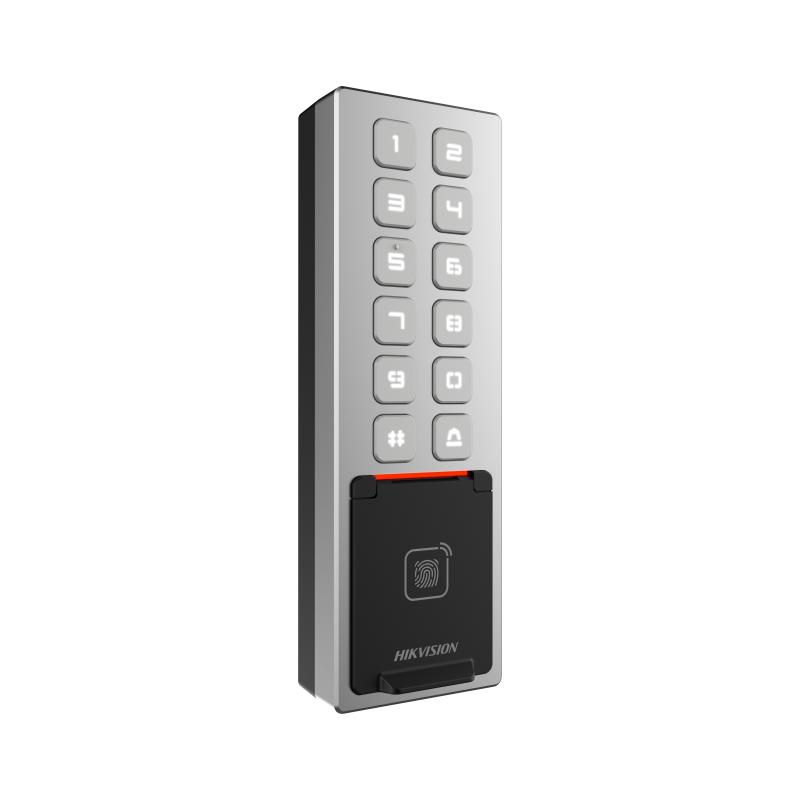

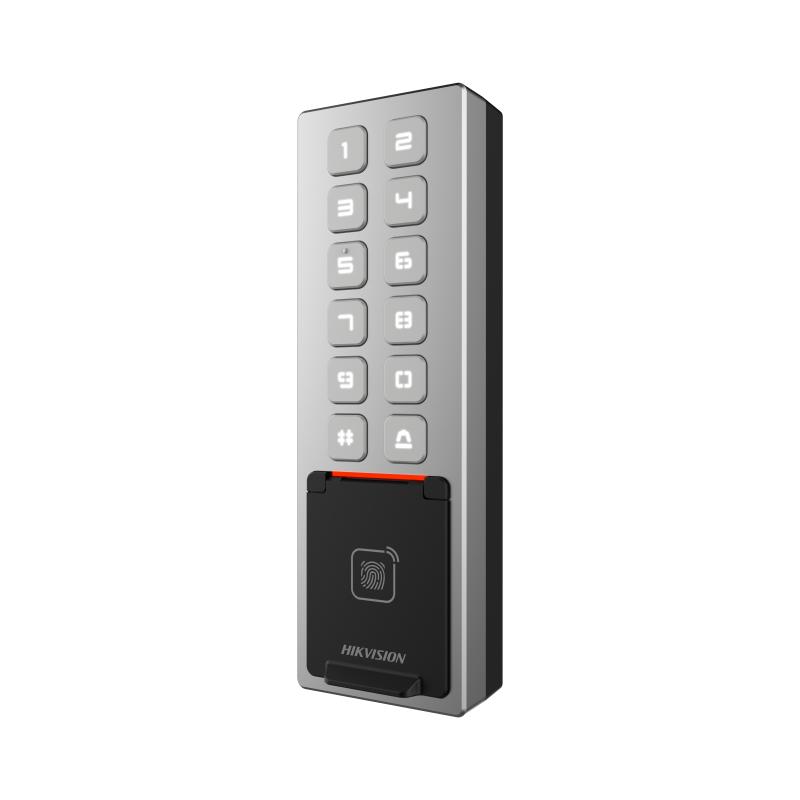

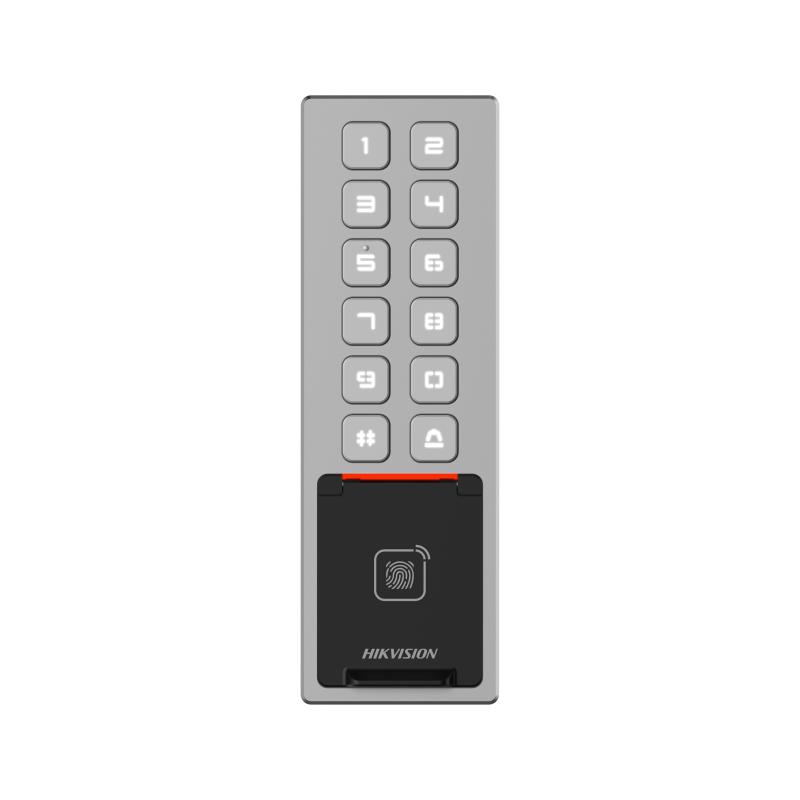

DS-K1T805MBFWX Access Control Terminal

The DS-K1T805MBFWX Access Control Terminal is a modern, multi-functional security device designed to deliver reliable access management for businesses, organizations, and secure facilities. Combining advanced biometric technology with versatile authentication methods, this device offers enhanced security, flexibility, and user convenience. Built with a durable design, intuitive interface, and extensive compatibility, it is an ideal solution for organizations looking to strengthen their access control systems.

Powerful Operating System and Connectivity

The terminal runs on a stable Linux operating system, ensuring reliable performance and quick response times in high-demand environments. For communication and data transfer, it supports both wired 10/100 Mbps self-adaptive networks and wireless connectivity via 2.4 GHz Wi-Fi, compatible with standards including IEEE802.11b/g/n as well as 802.11d/e/h/i. Additionally, Bluetooth support enables quick setup and configuration through mobile devices, enhancing ease of deployment.

Comprehensive Interfaces

The DS-K1T805MBFWX is equipped with a wide range of interfaces to support various access control setups. It includes:

• RS-485 port with OSDP support for secure communication with controllers.
• Wiegand (26/34) interface for integration with third-party systems.
• Lock control output for direct connection to electronic locks.
• Exit button and door contact input for monitoring door status and facilitating quick exits.
• Two alarm inputs and one alarm output, allowing integration with external alarm systems.
• Tamper input to provide alerts in case of unauthorized device interference.

These interfaces make the terminal highly versatile, capable of working in standalone setups or as part of larger, integrated access control systems.

Large Capacity for Cards, Fingerprints, and Events

The device supports up to 10,000 M1 cards, making it suitable for medium to large organizations. For biometric authentication, it has a fingerprint capacity of 3,000 users, ensuring high-level security with fast identification. Additionally, the terminal can store up to 100,000 events, which provides comprehensive records of access attempts, supporting detailed audits and enhanced monitoring of entry activity.

Advanced Authentication Options

The DS-K1T805MBFWX offers multi-modal authentication, allowing users to gain access using either RFID cards or fingerprints.

• Card authentication uses M1 cards with a reading distance of 0 to 4 cm and a reading speed of less than 1 second, ensuring smooth and efficient access.
• Fingerprint authentication is powered by an optical fingerprint module, supporting both 1:1 and 1:N comparison modes. With recognition times under 1 second, the device ensures fast and accurate biometric verification even in high-traffic areas.

This dual-authentication flexibility enhances security while providing convenience for different user preferences.

Efficient Power and Energy Consumption

The terminal operates on a 12 VDC/1 A power supply and consumes less than 12 W, making it an energy-efficient choice for continuous operation.

Reliable Operation in Tough Environments

Engineered for durability, the DS-K1T805MBFWX can operate in a wide temperature range from -30 °C to 60 °C (-22 °F to 140 °F) and humidity levels between 0% to 90% non-condensing. This makes it suitable for both indoor and outdoor installations, ensuring consistent performance even in harsh environmental conditions.

Compact, User-Friendly Design

With dimensions of 57.7 mm × 177 mm × 34.6 mm (2.3″ × 7.0″ × 1.4″), the device is compact and slim, enabling easy installation on door frames, walls, or access points without taking up significant space. The built-in buzzer provides audio prompts to guide users during authentication and to signal successful or failed access attempts.

Language and Accessibility

The terminal supports a wide range of languages, including English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, Ukrainian, and Russian, making it adaptable to multinational environments and organizations with diverse workforces.

Easy Configuration and Management

The DS-K1T805MBFWX is designed for simple setup and management. It can be configured via a web browser on PC or through mobile web operation, providing flexibility in device administration. It also integrates with Hik-Connect, Hikvision’s mobile application, enabling remote monitoring, device management, and instant access control notifications.

Security and Monitoring Functions

In addition to access control, the system offers comprehensive logging capabilities with system log management, making it easy to track and review user activities. The tamper detection feature ensures that administrators are alerted in case of device interference, safeguarding against sabotage or unauthorized removal.

Conclusion

The DS-K1T805MBFWX Access Control Terminal is a powerful and flexible solution for secure entry management. Its combination of biometric fingerprint recognition, RFID card support, and extensive connectivity options makes it suitable for a wide variety of applications, from small offices to large enterprise environments. With robust capacity, multilingual support, durable design, and user-friendly management tools, this terminal offers a reliable and future-proof investment for enhancing organizational security and efficiency.
