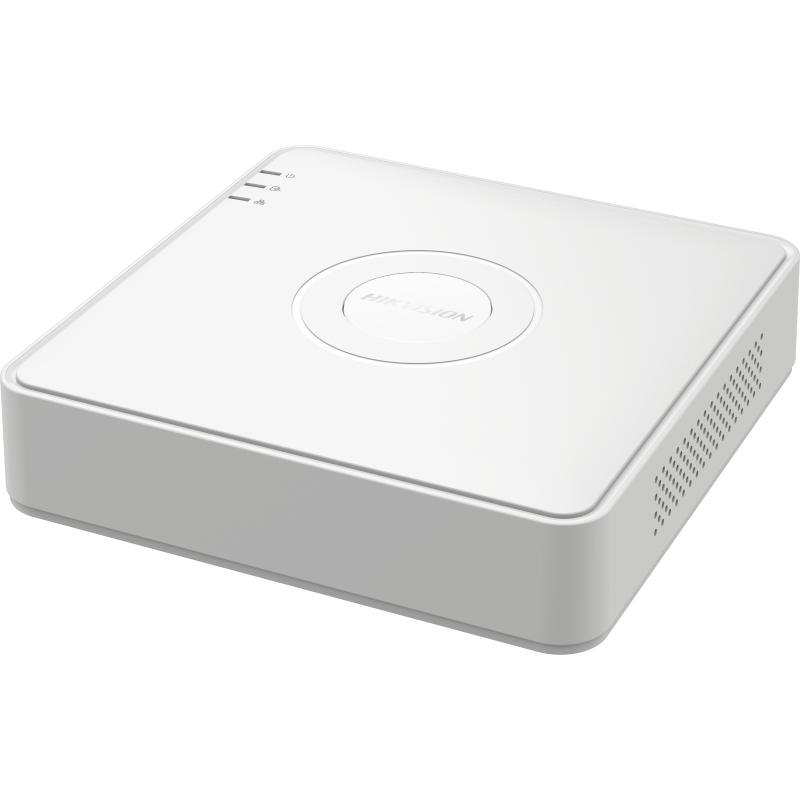

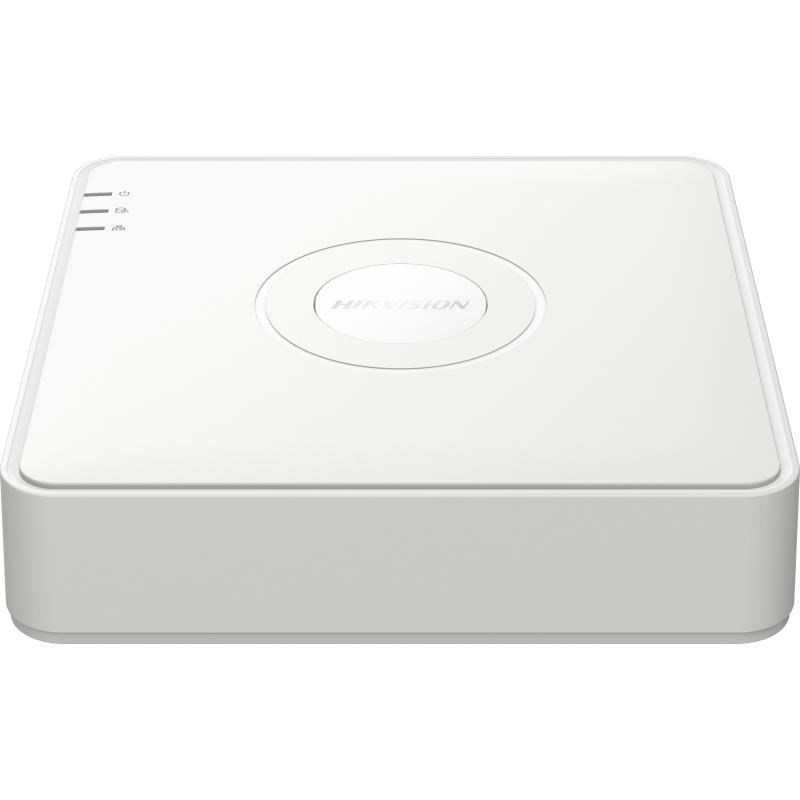

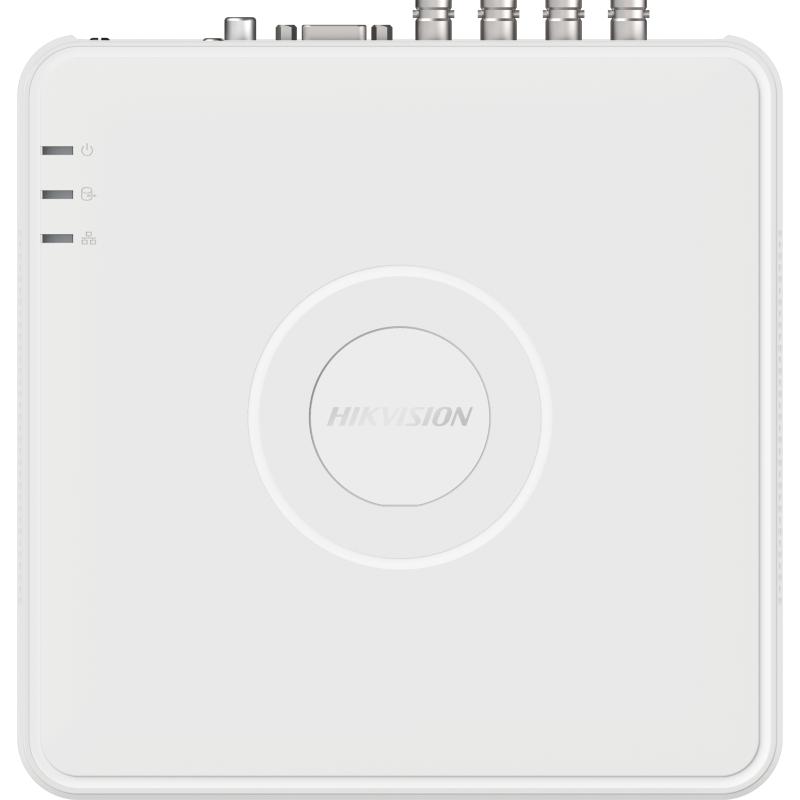

Hikvision DS-7108HGHI-M1/T 8-Channel 1080p Lite Mini 1U H.265 DVR with Audio

The Hikvision DS-7108HGHI-M1/T is a high-performance 8-channel digital video recorder (DVR) designed for professional surveillance applications. Built with advanced video compression, intelligent motion detection, and multi-format compatibility, this DVR provides efficient storage, reliable recording, and simplified playback. Compact in design yet powerful in features, it is ideal for small to medium surveillance setups such as retail shops, homes, offices, and small businesses.

Advanced Motion Detection 2.0

One of the standout features of this DVR is its deep learning-based Motion Detection 2.0 technology, which is enabled by default for all analog channels. Unlike traditional motion detection, it can intelligently classify objects such as humans and vehicles, dramatically reducing false alarms triggered by irrelevant objects like leaves, pets, or lighting changes. This makes monitoring more efficient and improves event accuracy.

Additionally, the DVR supports quick search by object or event type, allowing users to easily retrieve important footage without spending time scrolling through hours of video recordings.

Flexible Video and Audio Input

The DS-7108HGHI-M1/T supports both analog and IP cameras, providing flexibility for hybrid systems:

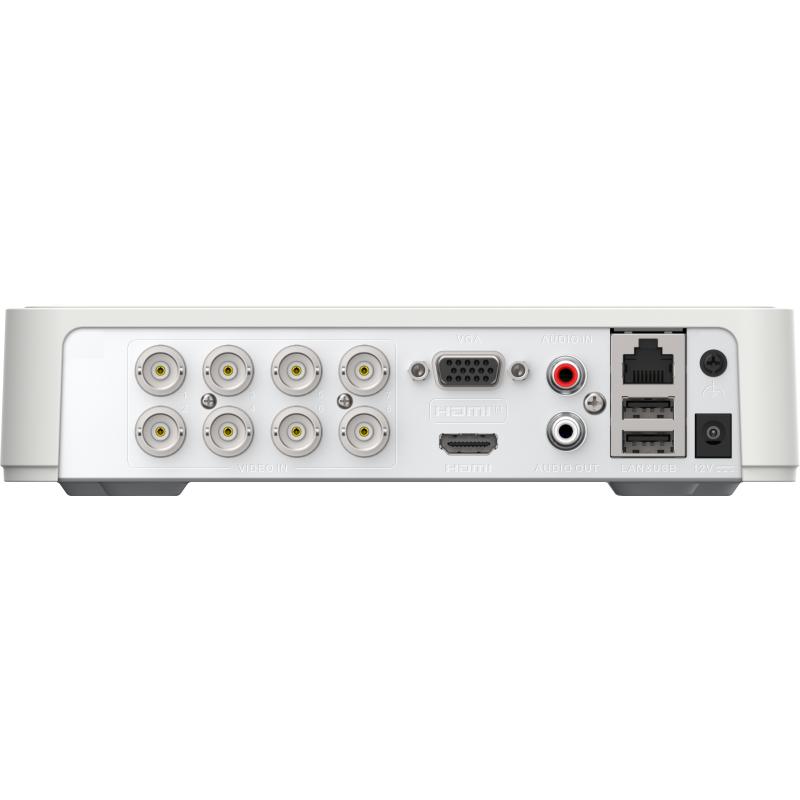

• Analog Video Input: 8 channels via BNC interface (1.0 Vp-p, 75 Ω), with coaxitron connection support.
• IP Video Input: Supports 2 additional IP channels (expandable up to 10 channels) with resolutions up to 5MP, offering flexibility for mixed installations.
• HDTVI/AHD/HDCVI Input: Supports 1080p at 25/30 fps and 720p at 25/30 fps for multiple analog formats.
• CVBS Input: Legacy analog support ensures backward compatibility.

For audio, it features 1 RCA audio input and supports 8-channel audio input via coaxial cable, plus 1 RCA audio output. Two-way audio is supported through the first audio input, enabling interactive communication.

High-Definition Video Output

The DVR delivers clear and detailed video through its dual outputs:

• HDMI Output: Supports up to 1920 × 1080 at 60Hz, as well as 1280 × 1024 and 1280 × 720 resolutions.
• VGA Output: Matches HDMI resolutions for compatibility with standard monitors.
• Simultaneous HDMI/VGA output allows flexible display setups.

With 8-channel synchronous playback, users can review multiple camera feeds at once, making incident review faster and more effective.

Efficient Recording and Compression

The DS-7108HGHI-M1/T uses advanced compression technologies including H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264. These formats significantly reduce storage requirements while maintaining high-quality video.

• Encoding Resolution:
  • 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF.
  • 720p stream access: 720p/WD1/4CIF/VGA/CIF.
  • SD stream access: WD1/4CIF/VGA/CIF.
• Frame Rate:
  • Main stream: Up to 15 fps for HD inputs, 25 fps (PAL)/30 fps (NTSC) for SD inputs.
  • Sub-stream: CIF/QVGA at 15 fps, or up to 25/30 fps depending on format.
• Video Bitrate: Adjustable from 32 Kbps to 4 Mbps.
• Audio Compression: G.711u, with an audio bitrate of 64 Kbps.

This ensures optimized storage usage while still delivering smooth and reliable video playback.

Networking and Remote Access

The DVR supports a wide range of network protocols, including TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, UPnP™, HTTPS, SADP, SMTP, and Hik-Connect. With Hik-Connect cloud integration, users can remotely monitor live feeds, playback recordings, and manage settings from smartphones, tablets, or PCs.

• Total Bandwidth: 72 Mbps, ensuring smooth video transmission across multiple channels.
• Remote Connections: Supports up to 64 simultaneous connections.
• Network Interface: 1 self-adaptive 10/100 Mbps RJ45 Ethernet port.

Storage and Backup Options

The DVR features 1 SATA interface supporting up to 4 TB capacity per disk, allowing long-term storage of video recordings. For data backup and export, it provides 2 USB 2.0 ports on the rear panel, enabling quick transfer to external drives.

Power and Environmental Performance

• Power Supply: 12 VDC, 1.5 A.
• Power Consumption: ≤ 10 W (without HDD).
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F).
• Working Humidity: 10% to 90% non-condensing.

Its low power consumption and wide operating temperature range ensure stable performance in various environments.

Compact and Lightweight Design

The DS-7108HGHI-M1/T has a sleek, Mini 1U form factor that saves space without compromising features. Its compact dimensions of 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch) and weight of ≤ 1 kg (2.2 lb, without HDD) make it easy to install in small spaces, making it suitable for home and business environments.

Conclusion

The Hikvision DS-7108HGHI-M1/T 8-Channel DVR is a reliable and intelligent video recording solution designed for small to medium-scale surveillance systems. With its deep learning motion detection, efficient video compression, hybrid video input support, and remote management capabilities, it ensures secure, accurate, and efficient monitoring. Whether used in homes, retail environments, or offices, this DVR offers a cost-effective and high-performance backbone for modern CCTV systems.
