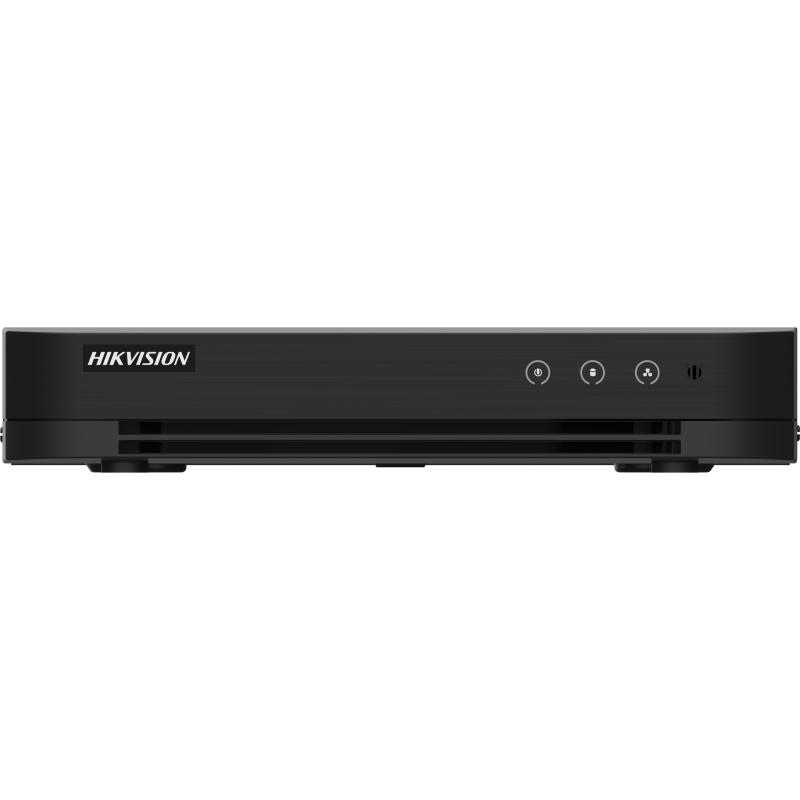

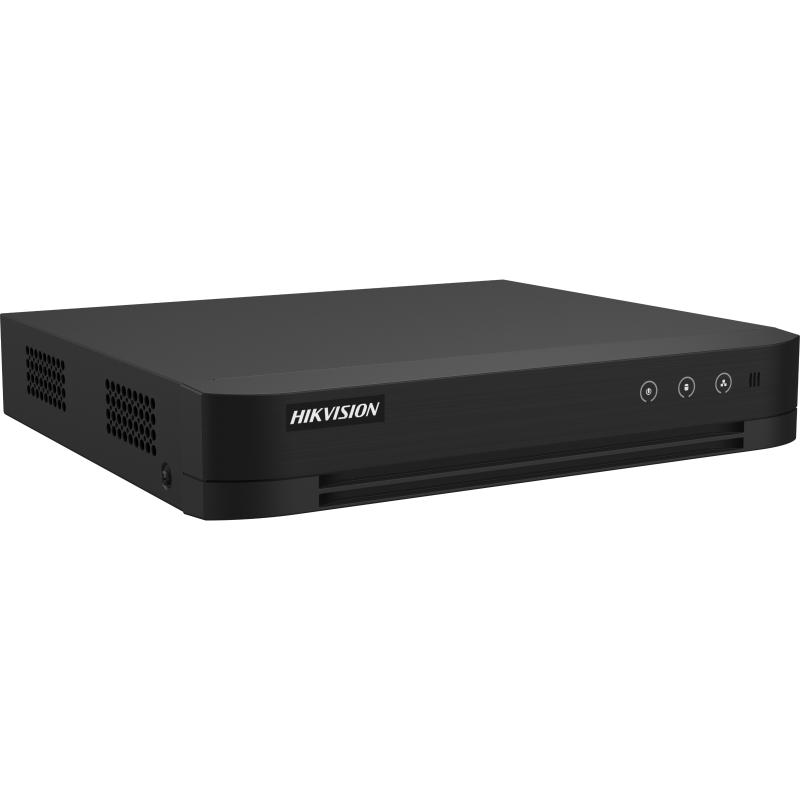

Hikvision DS-7208HGHI-M1 8-Channel 720p H.265 DVR

The Hikvision DS-7208HGHI-M1 is an 8-channel 720p DVR designed to deliver efficient, intelligent, and reliable video recording for surveillance systems. Built with H.265 video compression and enhanced with deep learning-based motion detection 2.0, this DVR ensures efficient storage use, reduced false alarms, and streamlined video management. Compact, powerful, and versatile, it is an excellent choice for homes, businesses, and institutions requiring dependable video recording at an affordable price.

Intelligent Motion Detection 2.0

A key highlight of the DS-7208HGHI-M1 is its deep learning-based Motion Detection 2.0. Enabled by default on all analog channels, this feature intelligently distinguishes between humans and vehicles, significantly reducing false alarms caused by irrelevant objects such as swaying trees, animals, or lights. With this function, security teams can focus on genuine threats while avoiding wasted time reviewing unnecessary alerts.

Additionally, the DVR supports quick search by object or event type, simplifying video retrieval and improving investigation efficiency.

Flexible Video Input

The DS-7208HGHI-M1 supports a wide range of camera inputs, making it compatible with multiple video technologies. It offers:

• 8-channel analog video input through BNC interfaces (1.0 Vp-p, 75 Ω), supporting coaxitron connections.
• HDTVI input at 1080p25/30, 720p25/30.
• AHD input at 1080p25/30, 720p25/30.
• HDCVI input at 1080p25/30, 720p25/30.
• CVBS input for legacy analog signals.

For IP integration, the DVR supports 2 IP channels (expandable up to 10 channels) with cameras up to 5 MP resolution. This hybrid capability allows users to upgrade existing analog systems gradually by incorporating IP cameras without replacing the entire setup.

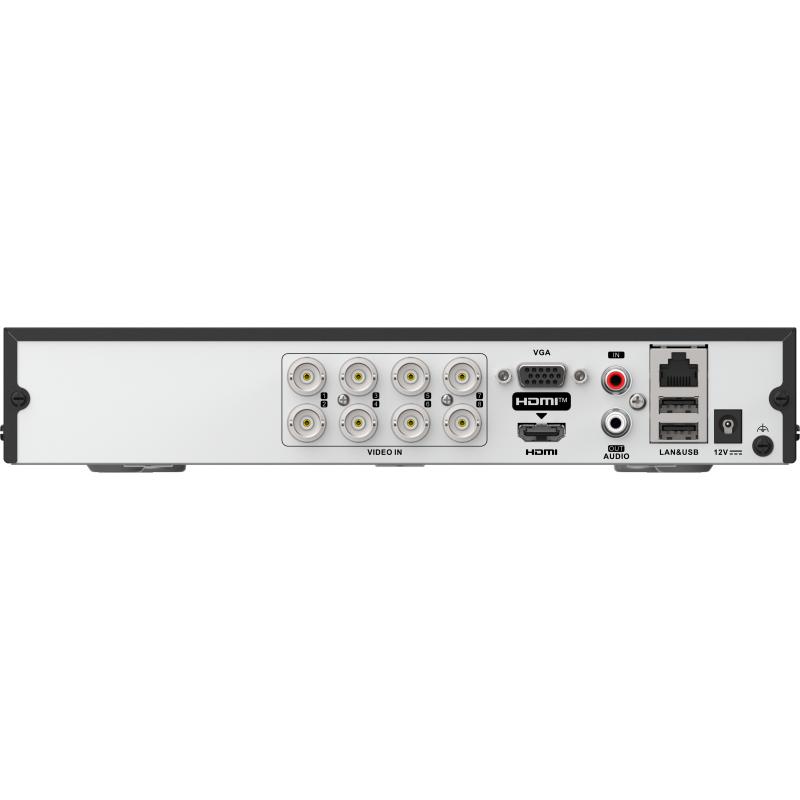

Video and Audio Output

The DVR provides clear video output via:

• 1 HDMI port (1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz).
• 1 VGA port (same resolutions as HDMI).

Both outputs support simultaneous HDMI/VGA display, giving flexibility in monitoring.

For audio, it includes:

• 1 RCA input (2.0 Vp-p, 1 KΩ).
• 8-channel audio via coaxial cable.
• 1 RCA audio output (linear, 1 KΩ).
• Two-way audio communication by reusing the first audio input.

It supports 8-channel synchronous playback, ensuring detailed review of multiple video feeds at once.

Efficient Recording and Compression

The DS-7208HGHI-M1 supports multiple compression standards, including H.265 Pro+/H.265 Pro/H.265/H.264+/H.264, enabling efficient storage without compromising video quality. This is especially useful for long-term recording, as it significantly reduces HDD space consumption.

Recording Resolution & Frame Rates:

• For 1080p streams: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF at 15 fps.
• For 720p streams: 720p/WD1/4CIF/VGA/CIF at 15 fps.
• For SD streams: WD1/4CIF/VGA/CIF at 25 fps (PAL) or 30 fps (NTSC).

Sub-Stream Support:

• CIF/QVGA at 15 fps (for 1080p and 720p).
• CIF/QVGA at 25 fps (PAL) / 30 fps (NTSC) for SD streams.

Bitrate flexibility ranges from 32 Kbps to 4 Mbps, allowing users to adjust video quality according to storage capacity and bandwidth needs.

Audio compression uses G.711u at 64 Kbps, ensuring clear sound recording.

Networking and Remote Access

With support for up to 64 remote connections, the DS-7208HGHI-M1 allows multiple users to access and monitor the system simultaneously. It is compatible with TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, and HTTPS protocols, making remote management and mobile access smooth and secure.

The DVR has a total bandwidth of 72 Mbps, ensuring smooth streaming and efficient video transfers. It includes one RJ45 10/100 Mbps Ethernet port for reliable network connectivity.

Storage and Backup

The DS-7208HGHI-M1 includes one SATA interface, supporting up to 4 TB of storage per disk. This capacity is sufficient for extended recording retention, especially when combined with H.265 Pro+ compression. For backup and data transfer, the DVR has two rear USB 2.0 ports, making it easy to export footage to external devices.

Compact, Efficient, and Reliable

The DVR is compact in design, measuring 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inches) and weighing ≤ 1 kg (2.2 lb. without HDD). It operates on a 12 VDC, 1.5 A power supply, consuming just ≤ 17 W (without HDD), making it energy-efficient.

It is designed for stability, operating reliably in environments ranging from -10 °C to 55 °C (14 °F to 131 °F) with 10% to 90% humidity, ensuring consistent performance in varying conditions.

Key Features at a Glance

• 8-channel 720p DVR with H.265 video compression
• Motion Detection 2.0 with human/vehicle classification
• Supports hybrid video input: HDTVI, AHD, HDCVI, CVBS, and IP cameras
• Expandable up to 10 IP channels, up to 5 MP resolution
• HDMI and VGA outputs, simultaneous display
• 8-ch synchronous playback
• H.265 Pro+ compression for optimized storage
• Supports 1 SATA HDD up to 4 TB
• Dual USB ports for backup/export
• Network bandwidth: 72 Mbps, 64 remote connections
• Compact 1U design, energy-efficient (≤ 17 W)

Conclusion

The Hikvision DS-7208HGHI-M1 8-Channel 720p H.265 DVR combines intelligent motion detection, efficient storage management, and broad compatibility with both analog and IP cameras. Offering hybrid input support, optimized compression, remote connectivity, and reliable performance, it is an excellent DVR for upgrading or building new surveillance systems. Compact yet powerful, it ensures reliable recording and smart analytics, helping users achieve comprehensive security monitoring at an affordable cost.
