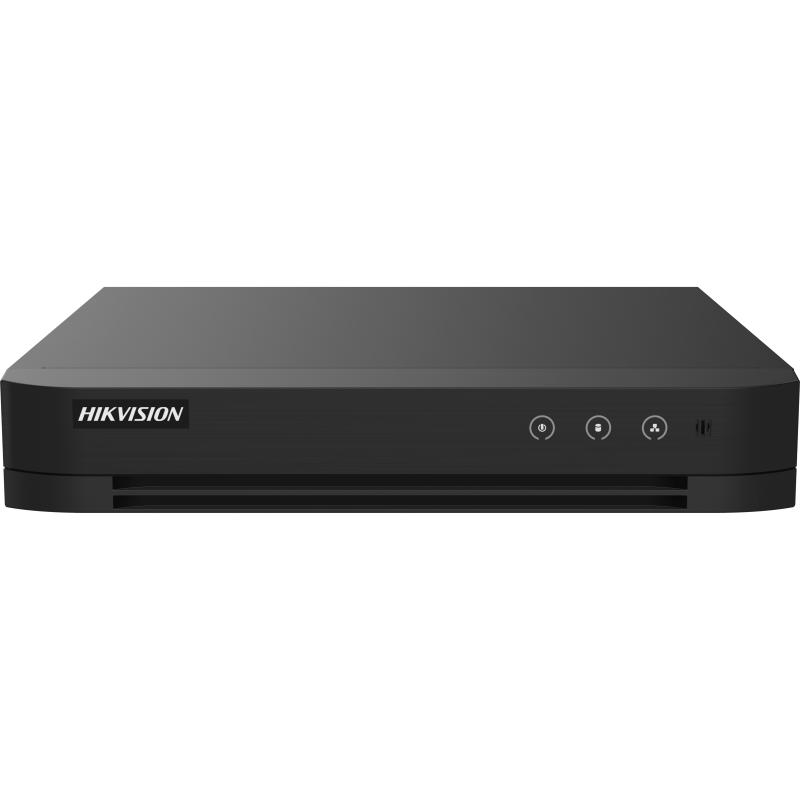

Hikvision DS-7216HGHI-M1 16-ch 720p 1U H.265 DVR

The Hikvision DS-7216HGHI-M1 is a high-performance 16-channel digital video recorder (DVR) engineered to deliver reliable video surveillance for both residential and commercial environments. Designed with versatility, scalability, and efficiency in mind, this DVR integrates advanced video compression technology, multi-format video input compatibility, and comprehensive playback functions, making it an essential component of modern security systems.

Video Compression Technology

To ensure efficient storage management and bandwidth savings, the DS-7216HGHI-M1 supports H.264 and H.264+ video compression. These codecs optimize storage usage by reducing file size without compromising video clarity, enabling longer recording durations even on standard hard drives. This makes it suitable for environments that require continuous video recording over extended periods.

Video Input and Compatibility

The DVR offers 16 analog video input channels, supporting multiple video formats including HD-TVI, AHD, CVI, CVBS, and IP video input. This flexibility allows seamless integration with different types of cameras, making it easier to upgrade existing analog systems without replacing all hardware.

For analog and HD-TVI video input, the device supports 1080p25, 1080p30, 720p25, and 720p30, ensuring compatibility with commonly used resolutions. Additionally, it can integrate up to 2 IP channels by default, extending its capacity up to 18 channels in total for hybrid surveillance systems. This feature makes the DVR ideal for organizations that want to gradually transition from analog to IP-based solutions.

Audio Capabilities

The DS-7216HGHI-M1 includes G.711u audio compression for efficient sound recording and playback. It features a 1-channel RCA two-way audio interface (2.0Vp-p, 1kΩ), enabling real-time communication between operators and remote sites. Audio quality is preserved at a 64 kbps bit rate, ensuring clear sound transmission alongside high-quality video footage.

Video/Audio Output

Supporting both HDMI and VGA output interfaces, the DVR provides maximum output resolutions of 1920 × 1080 at 60Hz, 1280 × 1024 at 60Hz, 1280 × 720 at 60Hz, and 1024 × 768 at 60Hz. This ensures compatibility with a variety of display devices, whether used for live monitoring or playback.

Recording Resolution and Frame Rate

The DS-7216HGHI-M1 features flexible recording modes to meet different surveillance needs:

• When 1080p Lite mode is enabled:
  • Supports 1080p Lite, HDD 720p Lite, WD1, 4CIF, VGA at 12fps
  • CIF at 25fps (PAL) / 30fps (NTSC)
• When 1080p Lite mode is not enabled:
  • For 720p stream access: 720p, WD1, 4CIF, VGA at 12fps
  • CIF at 25fps (PAL) / 30fps (NTSC)
• For SD stream access:
  • WD1, 4CIF, VGA, CIF at 25fps (PAL) / 30fps (NTSC)
• Sub-stream:
  • CIF/QVGA/QCIF at 25fps (PAL) / 30fps (NTSC)

This flexible frame rate management allows system integrators to balance between video quality and storage space, depending on application requirements.

Bit Rate and Dual Stream

The DVR supports a video bit rate range of 32 Kbps to 4 Mbps, offering adaptability based on network conditions and storage availability. With dual stream functionality, users can record in high resolution while simultaneously transmitting lower-resolution streams for remote monitoring on bandwidth-limited networks.

Playback and Storage Features

With 16-channel synchronous playback, users can review multiple camera feeds simultaneously, making incident investigation faster and more efficient. Advanced playback controls and timeline search functions simplify the process of locating and analyzing recorded footage.

The DVR also supports system logs, providing detailed records of system operations, alarms, and events, ensuring transparency and easier troubleshooting when needed.

Enhanced Security and Management

Hikvision prioritizes data security with support for various authentication and user management features. The system enables flexible network management through DHCP, static IP, and PPPoE WAN modes, offering smooth integration into different network infrastructures. Firmware upgrades and updates can be easily managed through the web interface, ensuring the DVR remains updated with the latest security patches and performance improvements.

Long-Distance Transmission

One of the standout features of the DS-7216HGHI-M1 is its long-distance transmission capability, supporting up to 1,200 meters for 720p HDTVI signals. This allows installers to connect cameras from remote or extended areas without requiring additional transmission hardware, lowering overall installation costs.

Conclusion

The Hikvision DS-7216HGHI-M1 DVR combines performance, efficiency, and compatibility in a compact 1U form factor. With its support for multi-format inputs, advanced compression, high-resolution output, and long-distance transmission, it is a dependable choice for medium to large-scale surveillance applications. Whether deployed in offices, retail stores, schools, or industrial facilities, this DVR delivers robust functionality to secure and monitor environments with ease.
