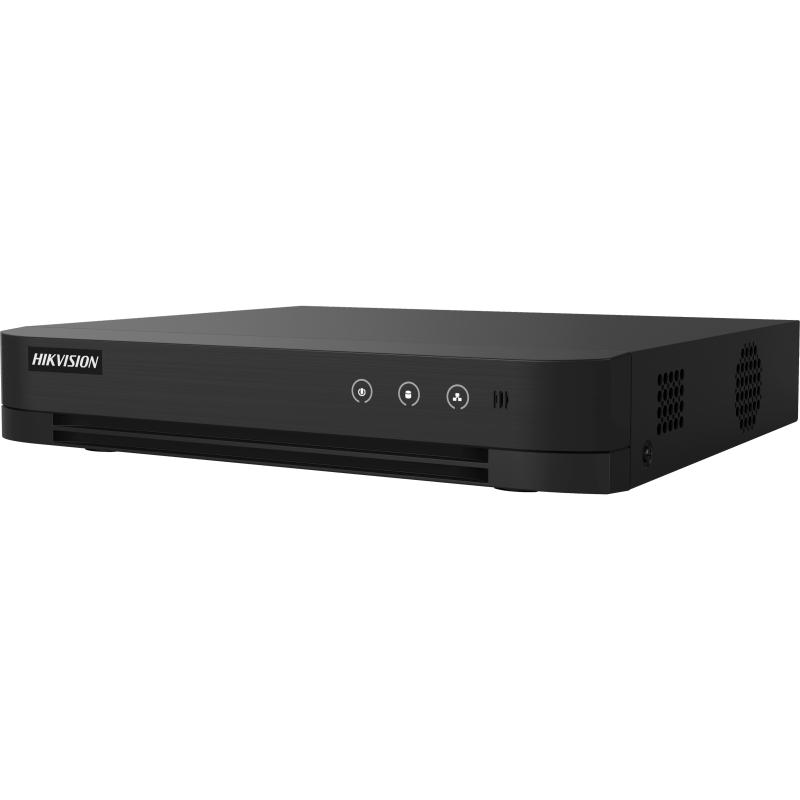

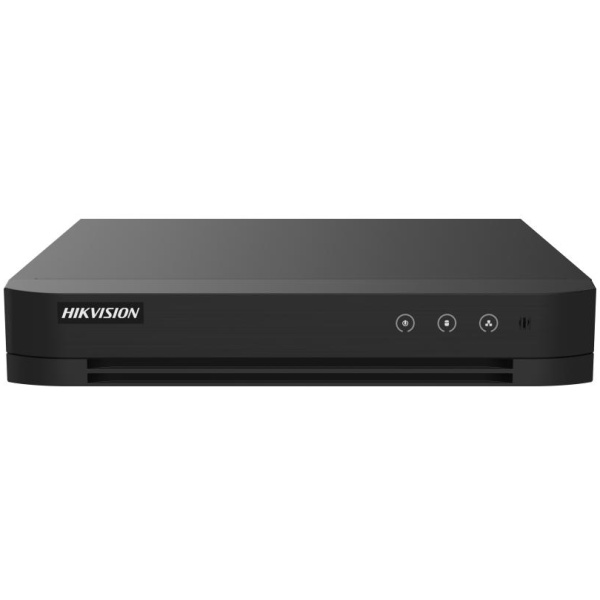

Hikvision DS-7232HGHI-M2 32-Channel 1080P DVR

The Hikvision DS-7232HGHI-M2 is a high-performance 32-channel DVR engineered to provide advanced video surveillance management with cutting-edge features, flexible recording options, and intelligent motion detection capabilities. Designed for medium to large-scale security installations, this DVR combines deep learning-based analytics, multi-format camera support, efficient storage compression, and powerful network capabilities, making it an ideal choice for professional-grade security systems.

Intelligent Motion Detection 2.0

One of the standout features of the DS-7232HGHI-M2 is its deep learning-based Motion Detection 2.0, enabled by default on all analog channels. Unlike conventional motion detection, this enhanced system is capable of distinguishing between humans and vehicles, dramatically reducing false alarms caused by irrelevant objects such as animals, leaves, rain, or lighting changes.

This intelligent classification helps security teams focus on real threats and events, minimizing wasted time and resources. Additionally, users can benefit from quick search by object or event type, allowing for efficient playback and incident analysis. This capability ensures faster investigations and improved situational awareness.

Recording and Video Compression

The DVR supports multiple video compression technologies, including H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264. These advanced codecs reduce storage consumption while preserving video quality, enabling longer recording times without sacrificing clarity.

Encoding resolution options include 1080p Lite, 720p, 720p Lite, WD1, 4CIF, VGA, and CIF, providing flexibility depending on camera type and monitoring requirements.

• Main Stream:
  • For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA at 15fps; CIF at 25fps
  • For 720p stream access: 720p/WD1/4CIF/VGA at 15fps; CIF at 25fps
  • For SD access: WD1/4CIF/VGA/CIF at 25fps
• Sub-Stream: CIF/QVGA at 15fps

The supported video bit rate ranges from 32 Kbps to 4 Mbps, balancing bandwidth efficiency with video quality. While dual-streaming is not supported, the system ensures stable and reliable recording suitable for high-demand environments.

Video and Audio Capabilities

The DS-7232HGHI-M2 supports 32 analog video input channels through BNC interfaces, making it an excellent solution for large surveillance setups. It is compatible with multiple video formats, including:

• HDTVI: 1080p25, 1080p30, 720p25, 720p30
• AHD: 1080p25, 1080p30, 720p25, 720p30
• HDCVI: 1080p25, 1080p30, 720p25, 720p30
• CVBS: PAL/NTSC

Additionally, the DVR supports 2 IP video inputs, expandable up to 18 IP channels, with support for resolutions up to 5 MP. This hybrid design ensures smooth integration of both analog and IP-based surveillance solutions, allowing organizations to transition gradually to IP technology.

For video output, the DVR provides:

• HDMI output (1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz)
• VGA output (same resolutions as HDMI)
• CVBS output (BNC interface)

On the audio side, the DS-7232HGHI-M2 includes:

• 1 RCA audio input (2.0Vp-p, 1kΩ)
• 32-channel audio via coaxial cable
• 1 RCA audio output (linear, 1kΩ)
• Two-way audio support using the first RCA audio input

Audio compression is handled with G.711u, offering a bitrate of 64 Kbps for clear sound quality.

Playback and Storage

The DVR supports synchronous playback for up to 16 channels, ensuring efficient review of multiple feeds simultaneously. Intelligent search functions allow users to quickly retrieve footage based on event type, human/vehicle classification, or specific timeframes.

For storage, the unit offers 2 SATA interfaces, each supporting up to 10 TB capacity, providing a total of 20 TB storage. This makes it suitable for large-scale, long-duration recording environments such as factories, campuses, and corporate buildings.

Networking and Remote Access

With a total bandwidth of 128 Mbps, the DS-7232HGHI-M2 ensures smooth live view, playback, and remote access. It supports up to 128 remote connections, enabling multiple operators or devices to monitor the system simultaneously.

The DVR is compatible with a wide range of network protocols, including TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, and EHome.

Additionally, users can connect the DVR to Wi-Fi via a USB Wi-Fi dongle, providing flexible network setup options.

Auxiliary Interfaces and General Specifications

• USB ports: 1 × USB 2.0 (front), 1 × USB 3.0 (rear)
• RS-485 interface: for PTZ camera control (half-duplex)
• Power supply: 12 VDC, 3.33 A
• Power consumption: ≤ 18 W (without HDD)
• Operating temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Humidity: 10% to 90%
• Dimensions: 380 × 320 × 48 mm (10.2 × 8.7 × 1.8 inches)
• Weight: ≤ 2.2 kg (without HDD, approx. 4.9 lbs)

Conclusion

The Hikvision DS-7232HGHI-M2 DVR is a powerful, feature-rich solution designed for demanding surveillance applications. With its 32-channel capacity, hybrid input support, intelligent motion detection, and flexible storage options, it delivers a scalable and efficient platform for securing large facilities. Whether deployed in shopping malls, schools, offices, or industrial complexes, this DVR ensures reliable, high-quality video management and playback, backed by Hikvision’s trusted technology.
